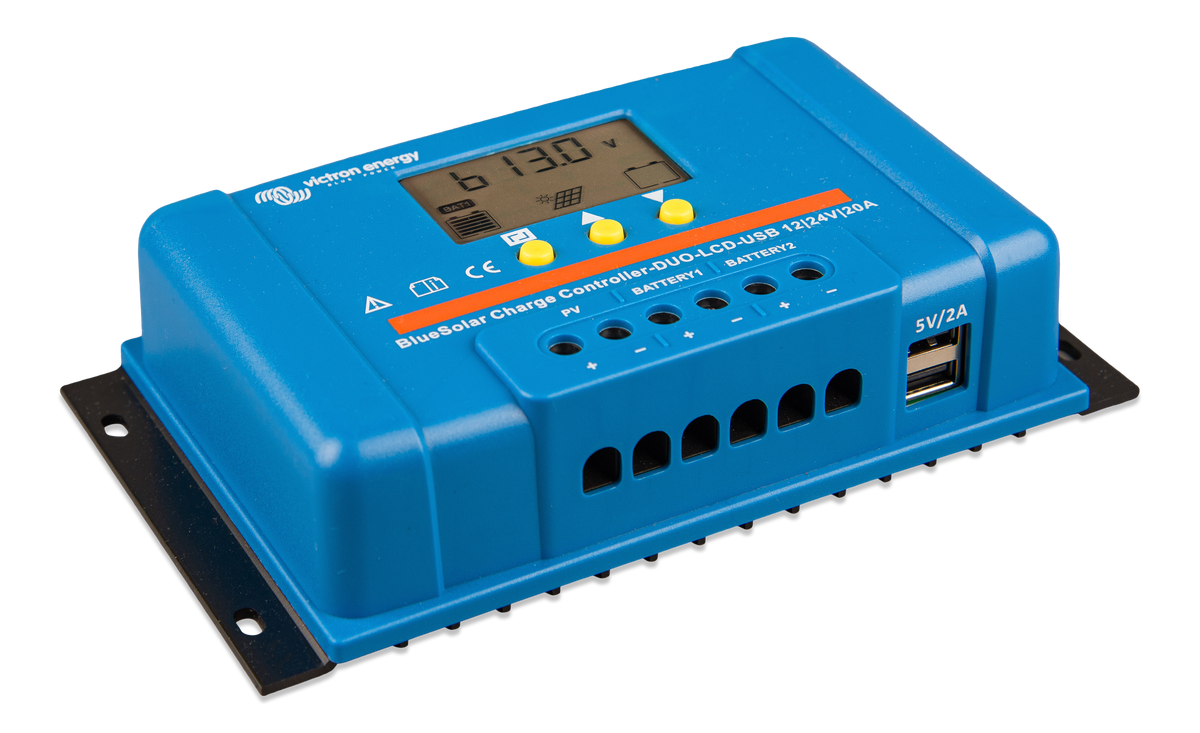

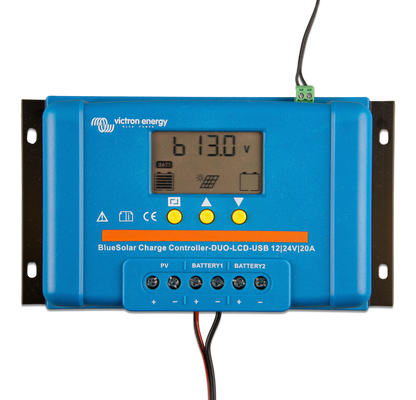

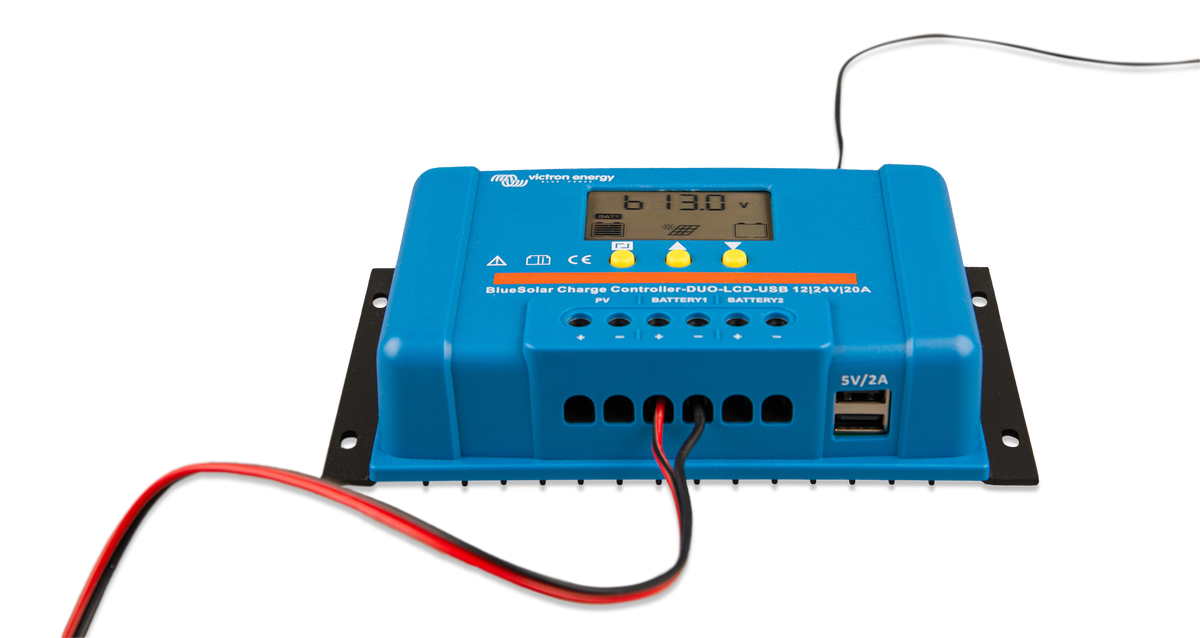

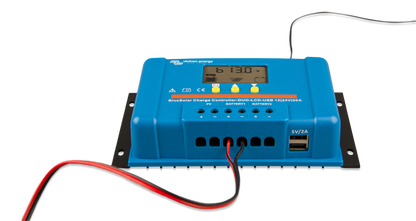

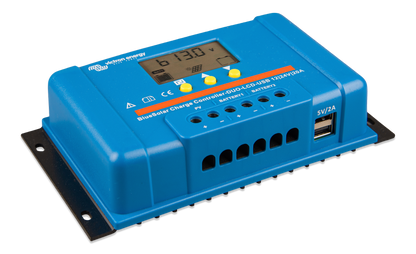

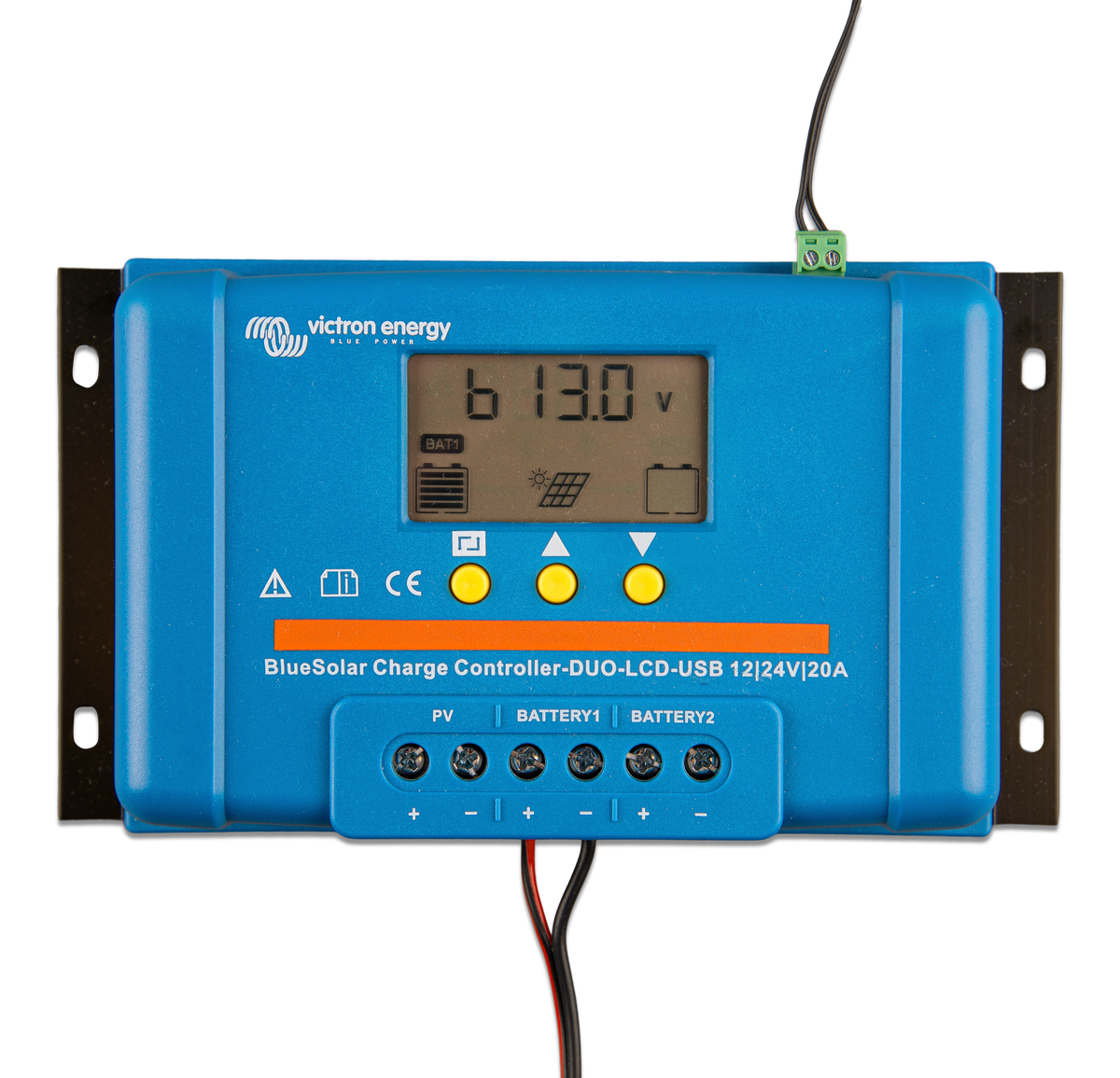

Blue Solar 20 AMP Charge Controller 12/24V PWM w/LCD Readout

The Victron BlueSolar PWM-LCD&USB 12/24V-20A is an easy to use solar charge controller for small 12V or 24V systems. The LCD readout shows what's going on at a glance, the load output protects your battery with a low voltage disconnect and day/night timer, and two USB ports let you charge devices right from the controller.

• Battery voltage: 12/24 V with automatic system voltage detection
• Rated charge current: 20 A
• Maximum solar voltage: 28 V / 55 V (12 V / 24 V systems)
• Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 (with internal BMS)
• Load output: manual control, low voltage disconnect and timer
• Two 5 V USB outputs (2 A total)
• Self-consumption: less than 10 mA
• Operating temperature: -35 to +60 °C (full load)
• Protection class: IP20
• Terminal size: 6 mm² (AWG10)
• Weight: 0.15 kg (0.33 lb)
• Dimensions (h x w x d): 96 x 169 x 36 mm (3.8 x 6.7 x 1.4 in)
• Part number: SCC010020050
