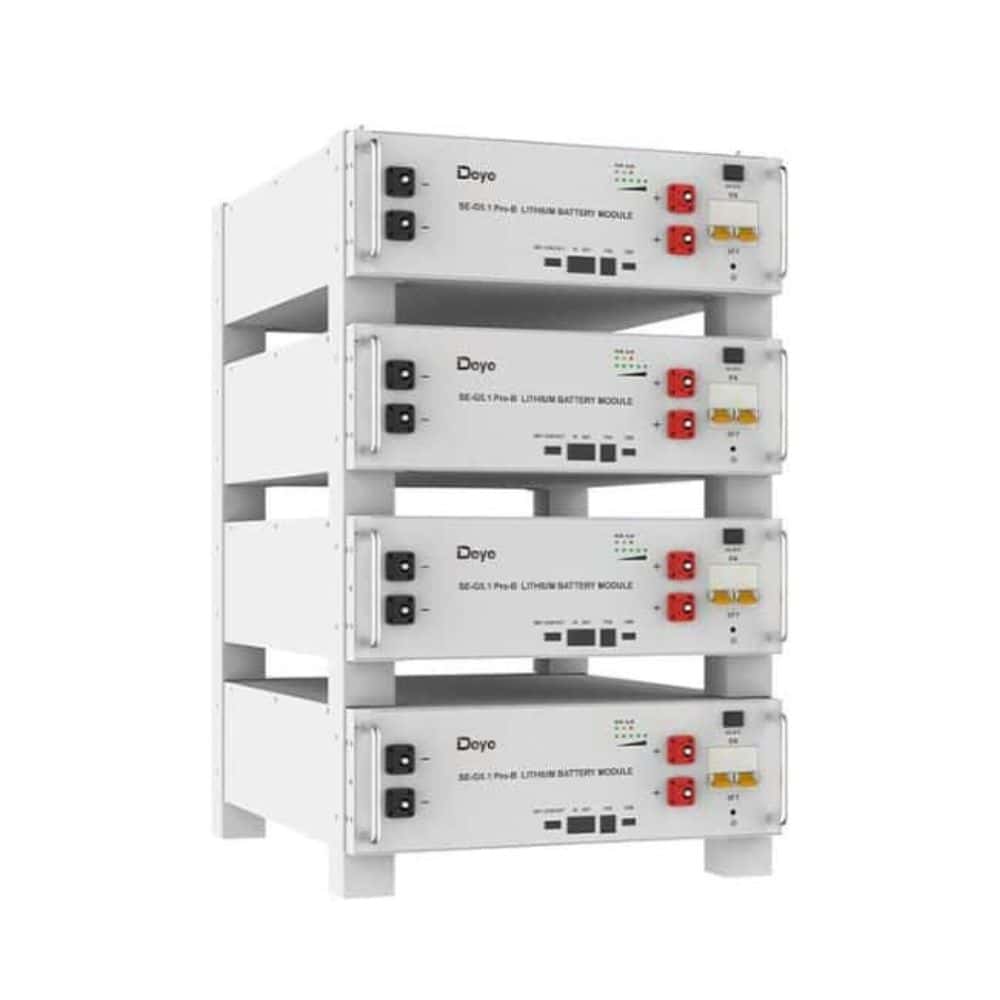

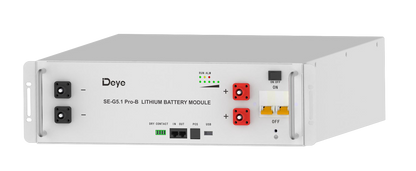

Deye 48V 100AH Rack Battery
$1,025.00
Regular price
$1,025.00
Sale price
$1,025.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Low stock! Only 6 left

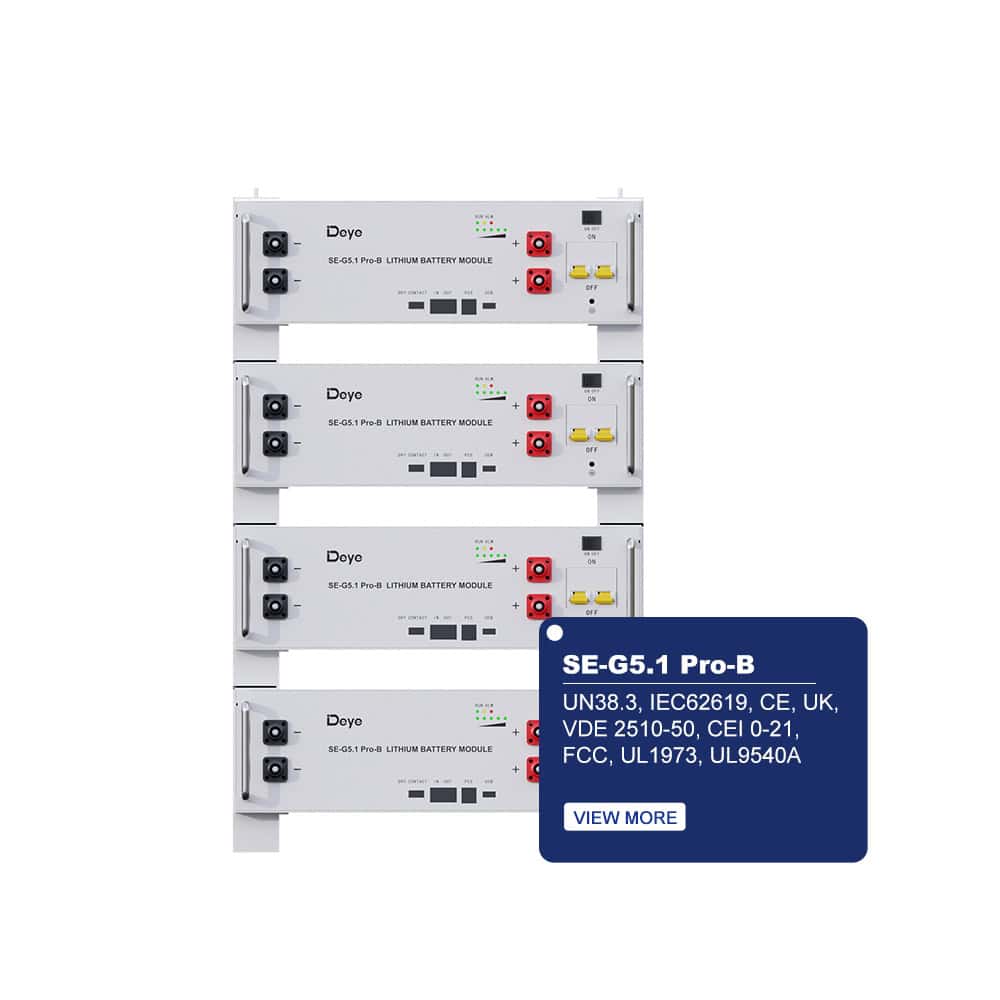

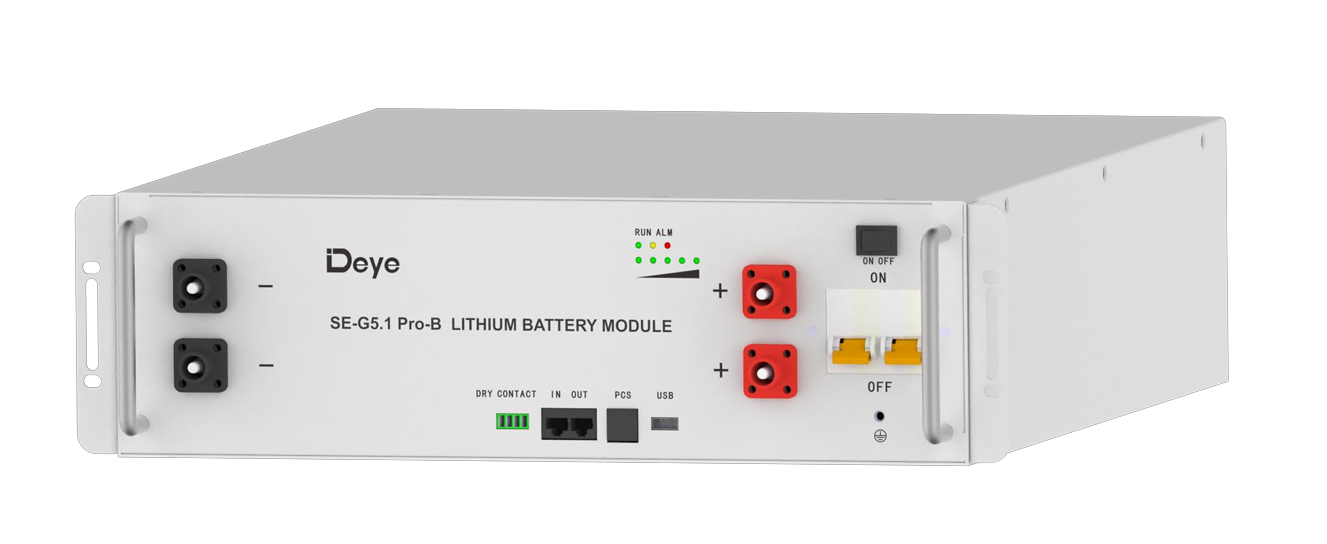

Deye 48V 100AH Battery Model: SE-G5.1 Pro-B
| Category | Specification |
|---|---|
| Battery Chemistry | LiFePO₄ |
| Built-in Circuit Breaker | 125A 2P, 60Vdc |
| Capacity (Ah) | 100 |
| Scalability | Max. 64 pcs pack (327kWh) in parallel (Max. 32 pcs no external setup) |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2 – 57.6 |
| Energy (kWh) | 5.12 |
| Usable Energy (kWh) | 4.6 |
| Recommended Depth of Discharge | 90% |
| Dimension (W×H×D, mm) | 440 × 133 × 540 |
| Weight Approximate (kg) | 45 |
| Master LED Indicator | 5LED (SOC: 20% – SOC100%), 3LED (working, alarming, protecting) |
| IP Rating of Enclosure | IP20 |
| Operating Temperature | Charge: 0~55°C (Optional heating: -20°C – 55°C), Discharge: -20°C~55°C |
| Altitude | ≤2000m |
| Cycle Life | ≥6000 (25°C±2°C, 0.5C / 0.5C, 90%DOD, 70%EOL) |
| Installation | Wall-Mounted, Floor-Mounted, Rack-Mounted (19-inch standard cabinet, cabinet depth ≥600mm) |
| Communication Port | CAN2.0, RS485 |
| Warranty Period | 10 years |
| Certification | UN38.3, IEC62619, CE, UK, VDE 2510-50, CEI 0-21, FCC, UL1973, UL9540A, UL9540 |
Key Benefits
