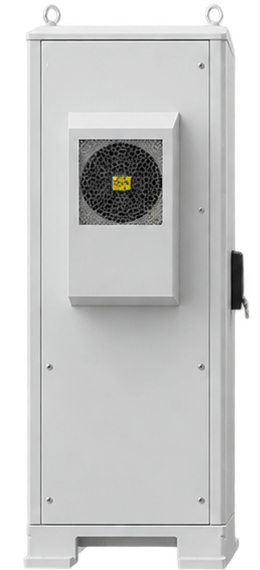

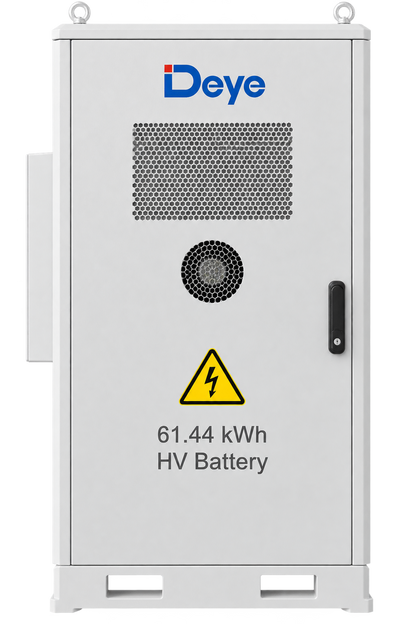

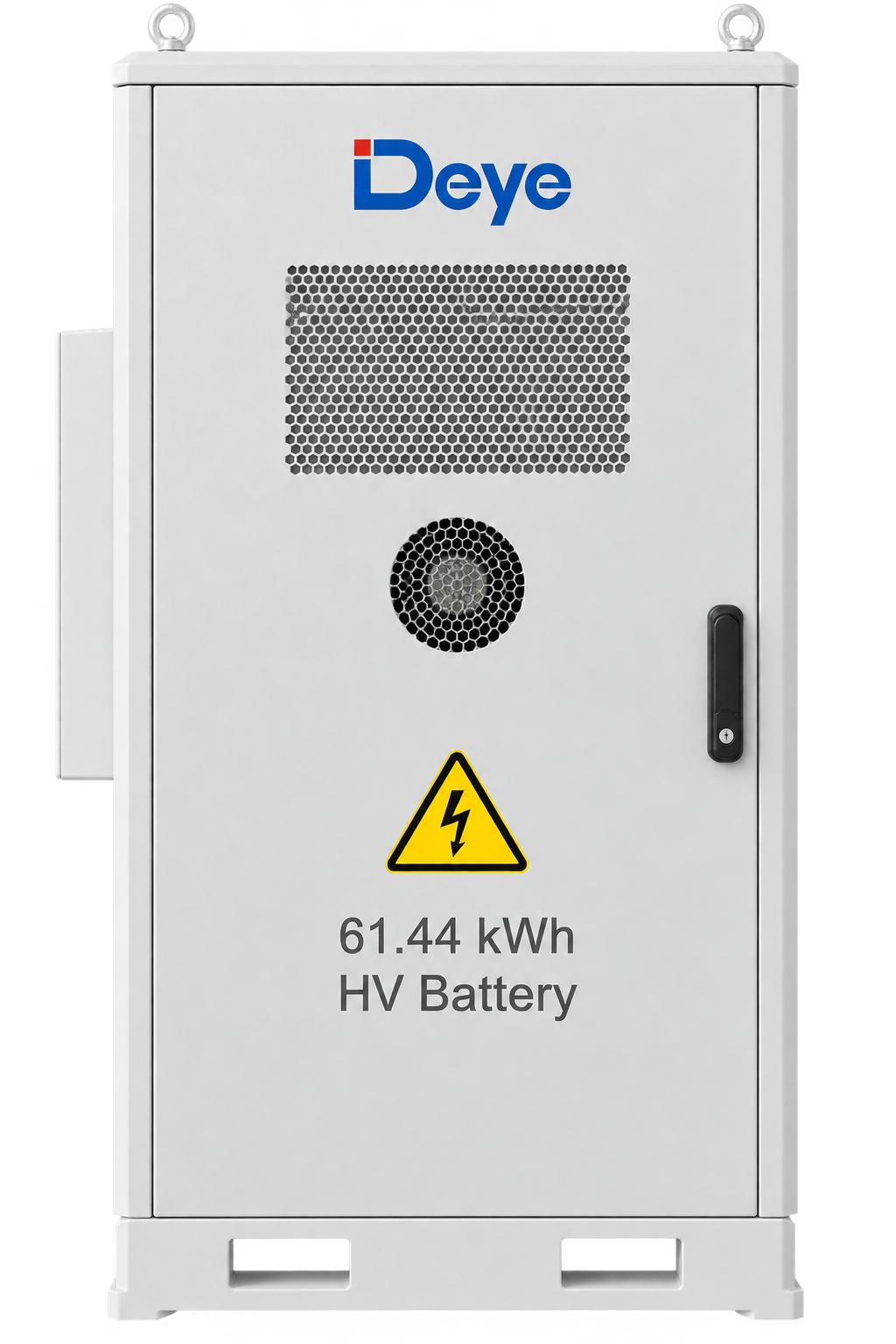

Deye 61.44 kWh Outdoor Lithium Battery HV
$27,899.99
Regular price
$27,899.99
Sale price
$27,899.99
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Awaiting stock, shipping soon
The Deye 61.44 kWh Outdoor Lithium Battery HV is a high-capacity energy storage solution designed for use with Deye 30 kW and 60 kW high-voltage inverter systems. Built for outdoor installation, this modular battery system provides reliable energy storage for residential, commercial, and solar backup applications.
Its high-voltage design helps deliver efficient energy transfer while the modular battery configuration makes it easier to scale and integrate into larger energy storage systems. The rugged outdoor enclosure is designed for dependable operation in demanding environments.
Key Features
- High-capacity system: 61.44 kWh total, 55.29 kWh usable

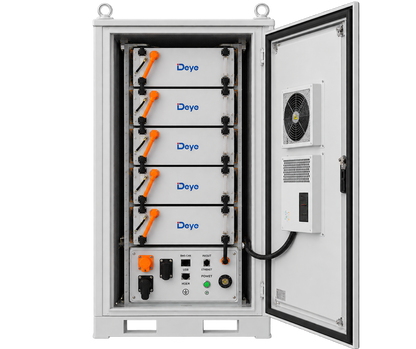

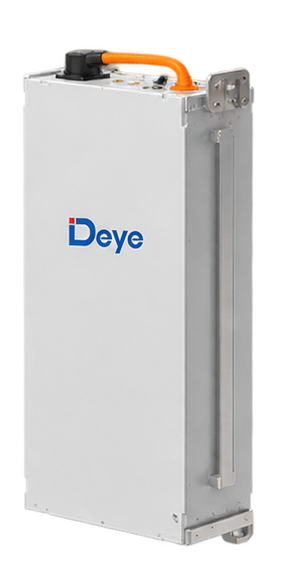

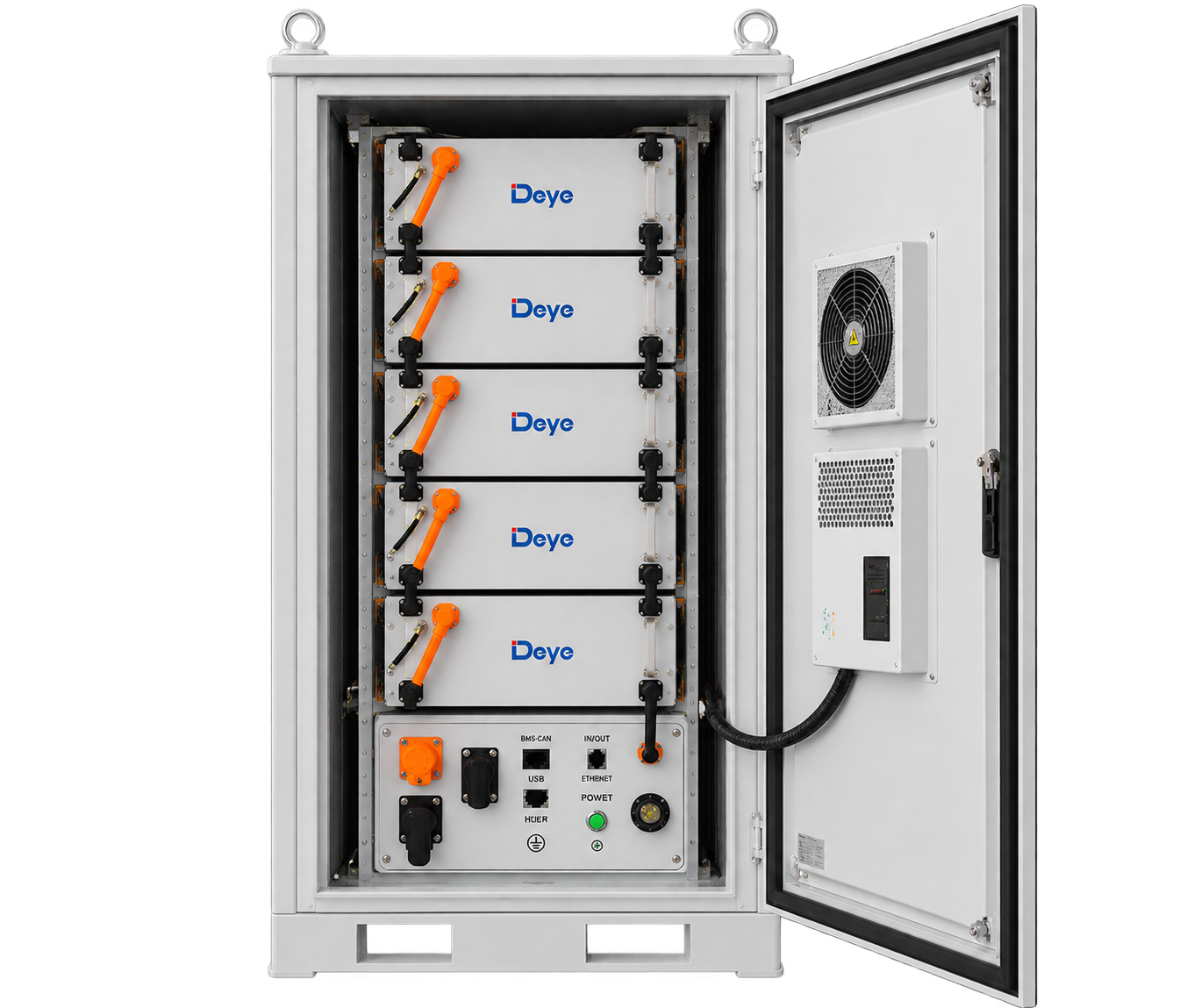

- Modular architecture: 12 series battery modules — 5.12 kWh / 100 Ah each
- Wide voltage range: 480–700 V (nominal 614.4 V)
- High charge/discharge capability: recommended 50 A, nominal 100 A, peak 125 A
- Integrated electronics: built‑in EMS, hybrid inverter, and BMS for optimized performance and safety
- Scalable: expandable up to 360 kWh for larger installations
- Active safety systems: aerosol fire suppression plus combustible gas, smoke, and temperature detection with active exhaust and alarm
- Rugged enclosure: IP55-rated protection against dust and water
- Cycle Life: ≥6000 (25±2°C, 0.5C/0.5C, EOL70%)
- Communication Port: CAN2.0 / RS485
Weight
Weight
Dimensions
Dimensions
