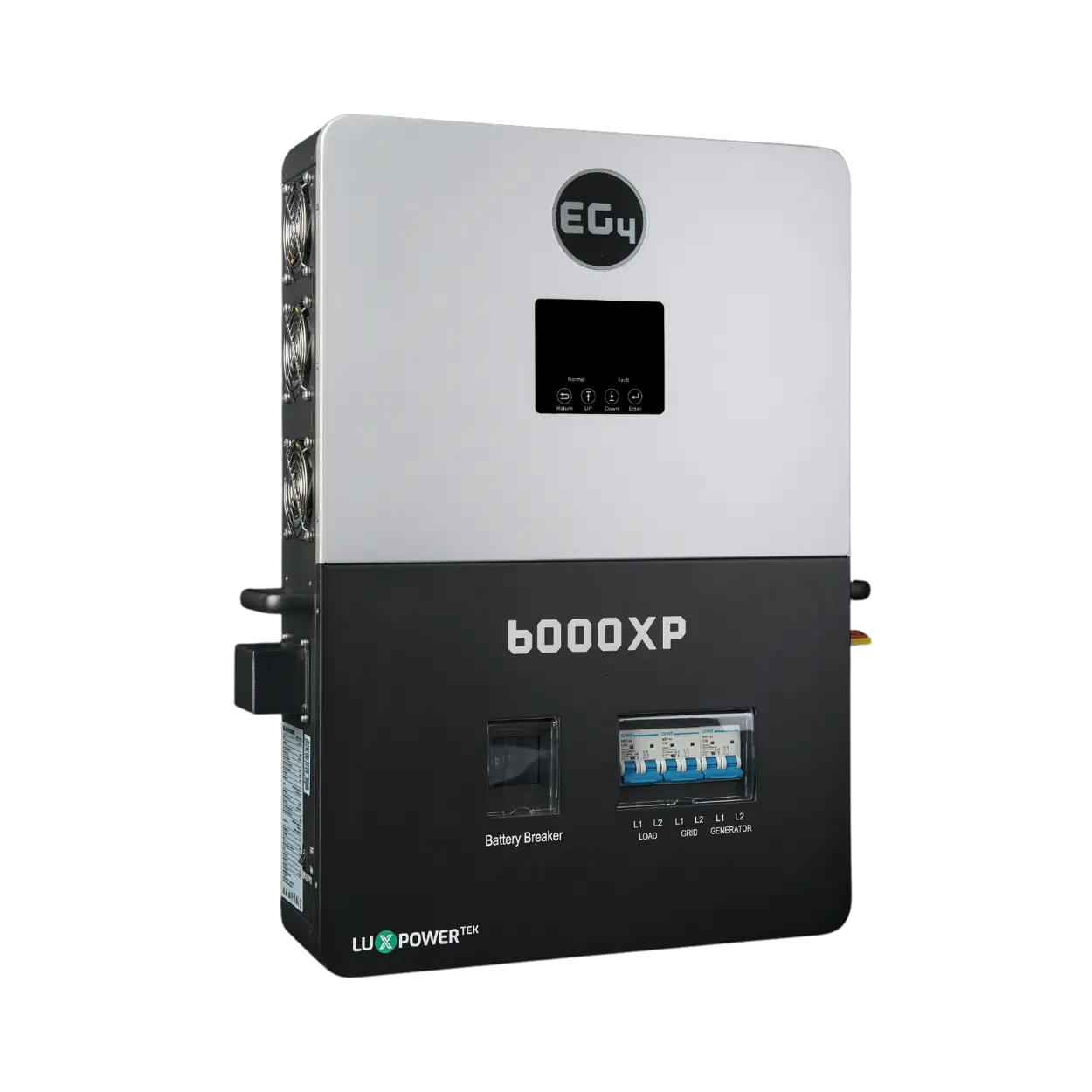

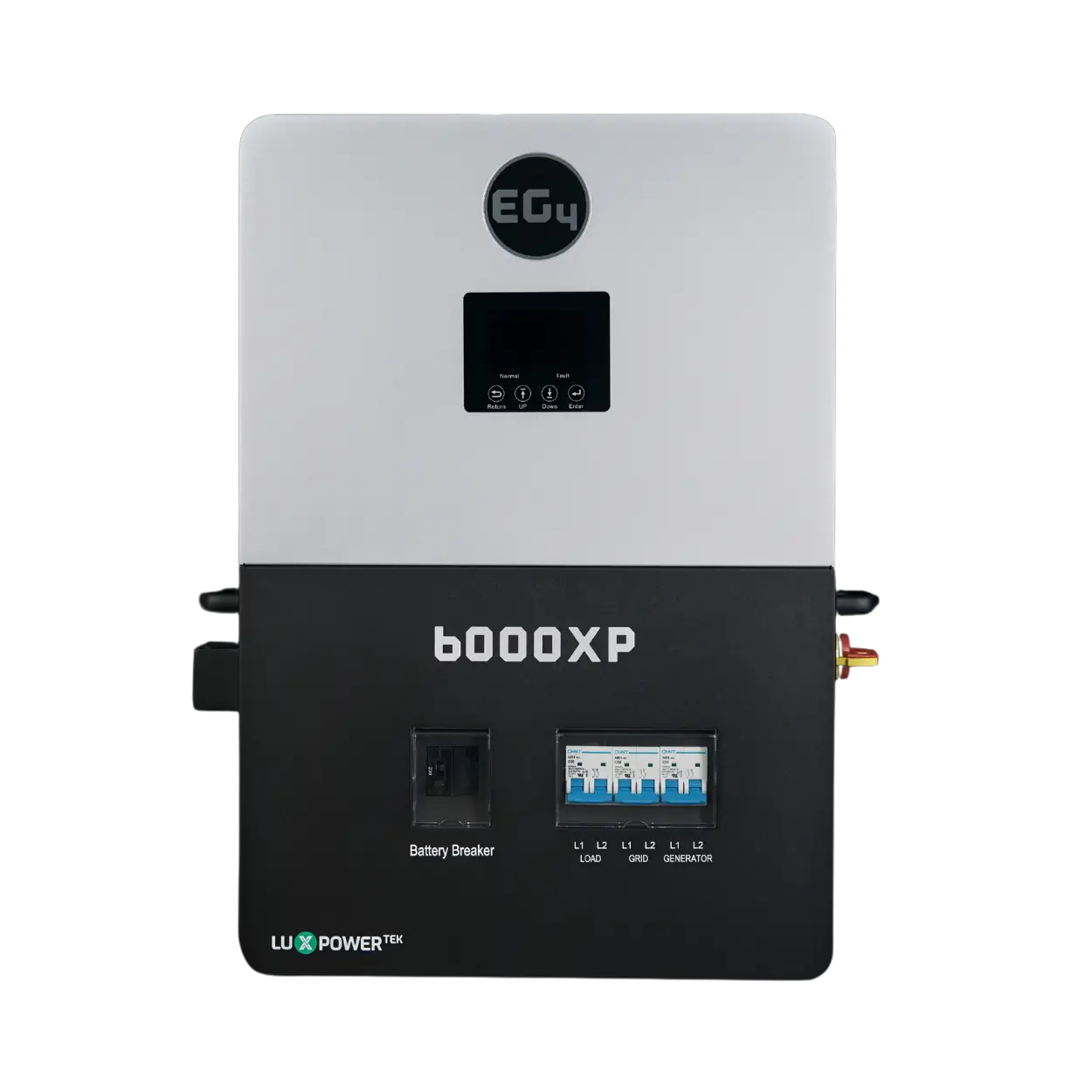

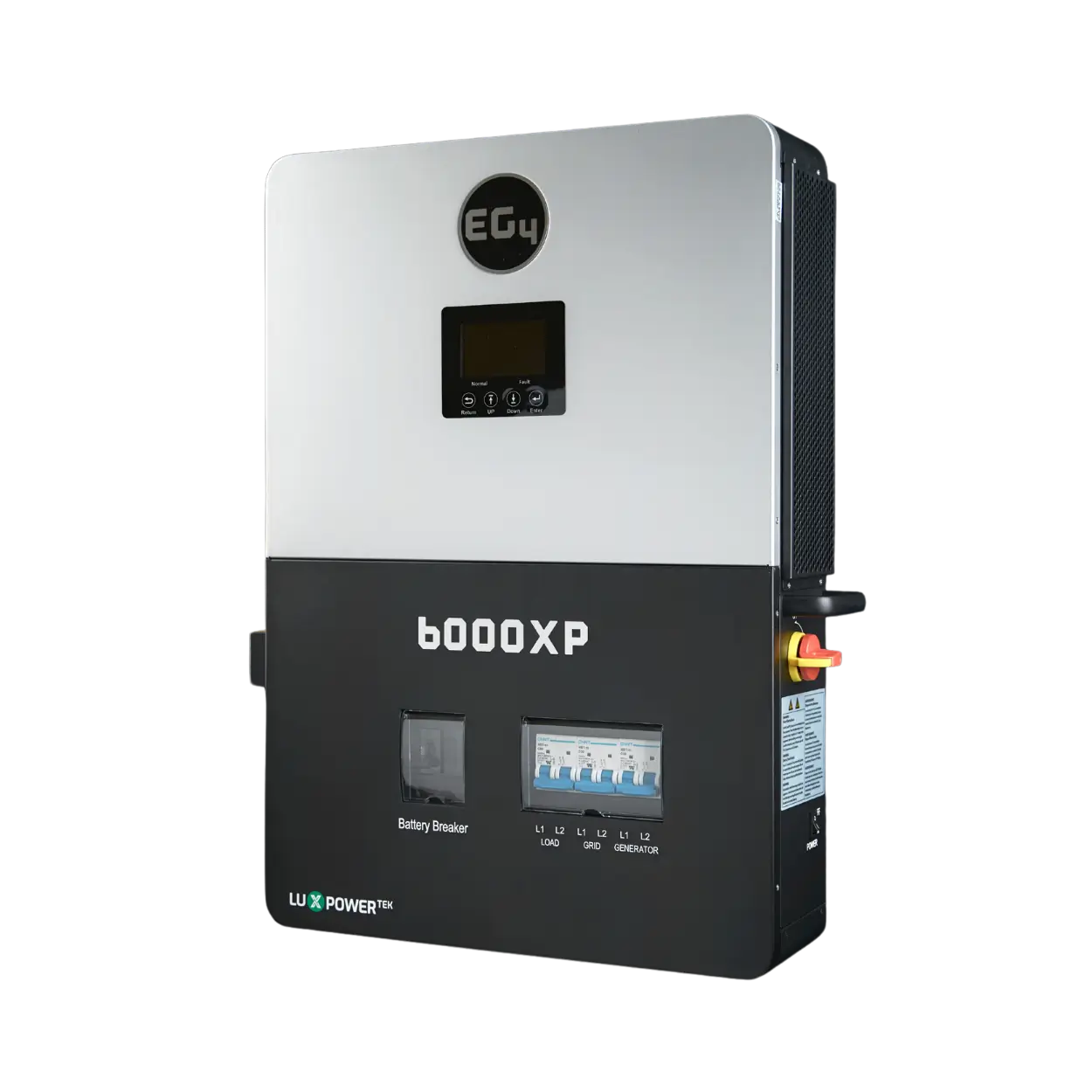

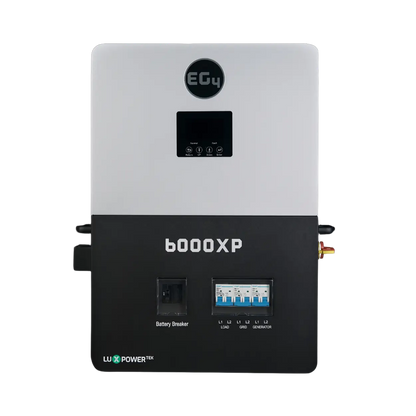

EG4 6k All-In-One Off Grid Inverter
$1,799.00
Regular price
$1,799.00
Sale price
$1,799.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Low stock! Only 6 left
EG4 6000XP
All-In-One Off Grid Inverter
The EG4 6000XP All-In-One Off-Grid Inverter is a 48V split-phase inverter/charger, providing powerful and efficient off-grid energy solutions. With an 8kW PV input and 6kW output, it can charge your battery bank while powering devices. It’s highly scalable, allowing up to 16 units to be paralleled for a combined 96kW output, making it versatile for both residential and commercial applications.
This transformerless, high-frequency inverter offers split-phase 120/240V output, operating off-grid or with grid input for supplemental charging. Its dual MPPTs support 8kW of solar input with a high 480VDC, minimizing cable size and setup complexity. Wi-Fi connectivity and EG4’s monitoring software enable real-time remote management, while closed-loop communications ensure seamless compatibility with EG4 48V batteries. Backed by a 5-year warranty, the 6000XP offers dependable off-grid power.
Industry-Leading Capacity:
Highest PV input on the market
Flexible Scalability:
Expands easily from small to large systems, 50-160 Amps (equivalent to full 200A service)
Affordable Solution:
Cost-effective for any system size
Compact Design:
Small footprint for the power and flexibility offered
MPPTs:
three configured as 26A/26A/15A. It now allows up to 5 strings, up to 13 Amp panels at up to 3 orientations.
When coupled with GridBOSS:
Supports AC Coupling, Smart Loads, and Generator
EMP-Hardened:
Ensures reliable operation during Electromagnetic Pulse (EMP) events.
PV Input: 21kW max usable, 24kW max input.
On-Grid AC Output:
- Continuous: 16kW @ 240V, 13.8kW @ 208V
-
Delivers 16kW to grid or load with PV/battery; 12kW to loads/battery without PV
AC Output:
- Nominal Current – 50A
- Nominal Output Voltage – 120/240V | 120/208V | 240V
- Continuous Output Power – 12000VA
-
Starts a 5-ton AC unit easily
Dimensions: 30.4×22.3×11.2 in.
Weight: 88 lbs.
Warranty: 10-years
