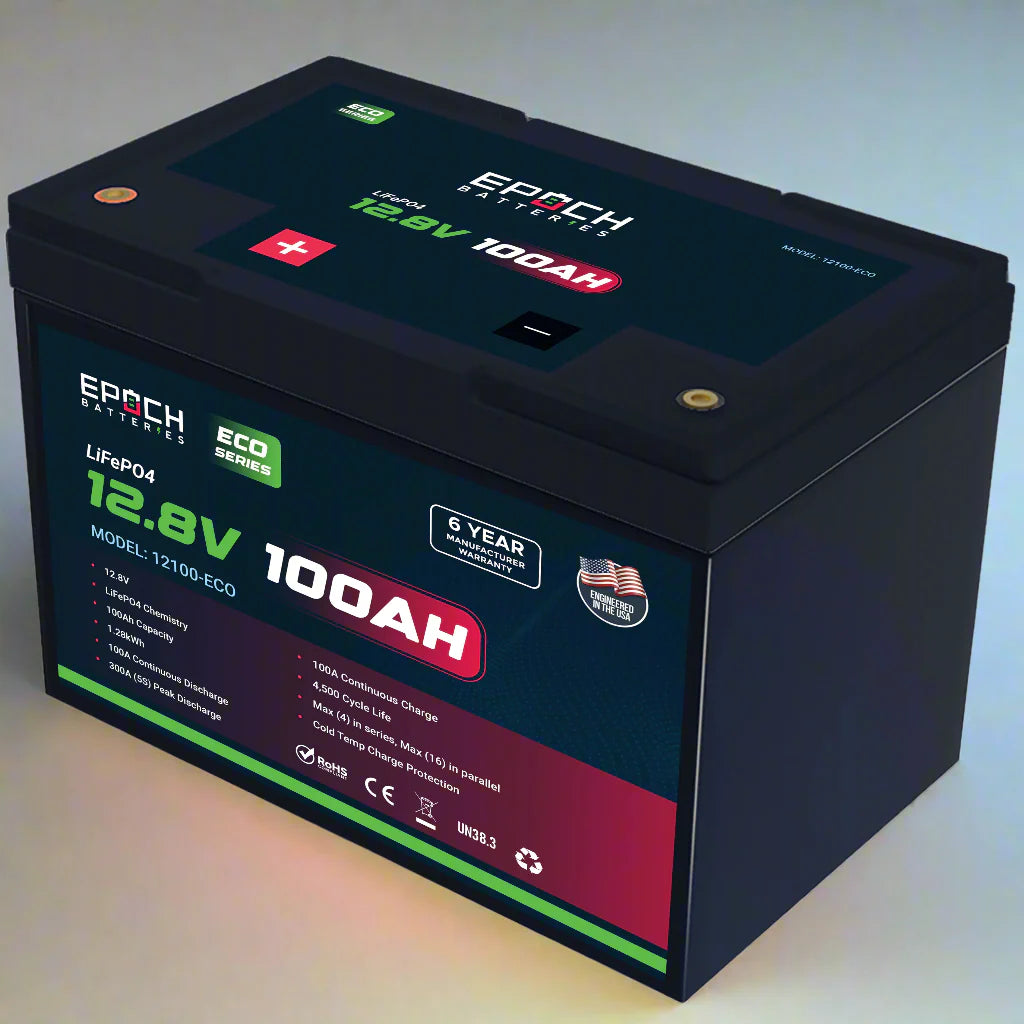

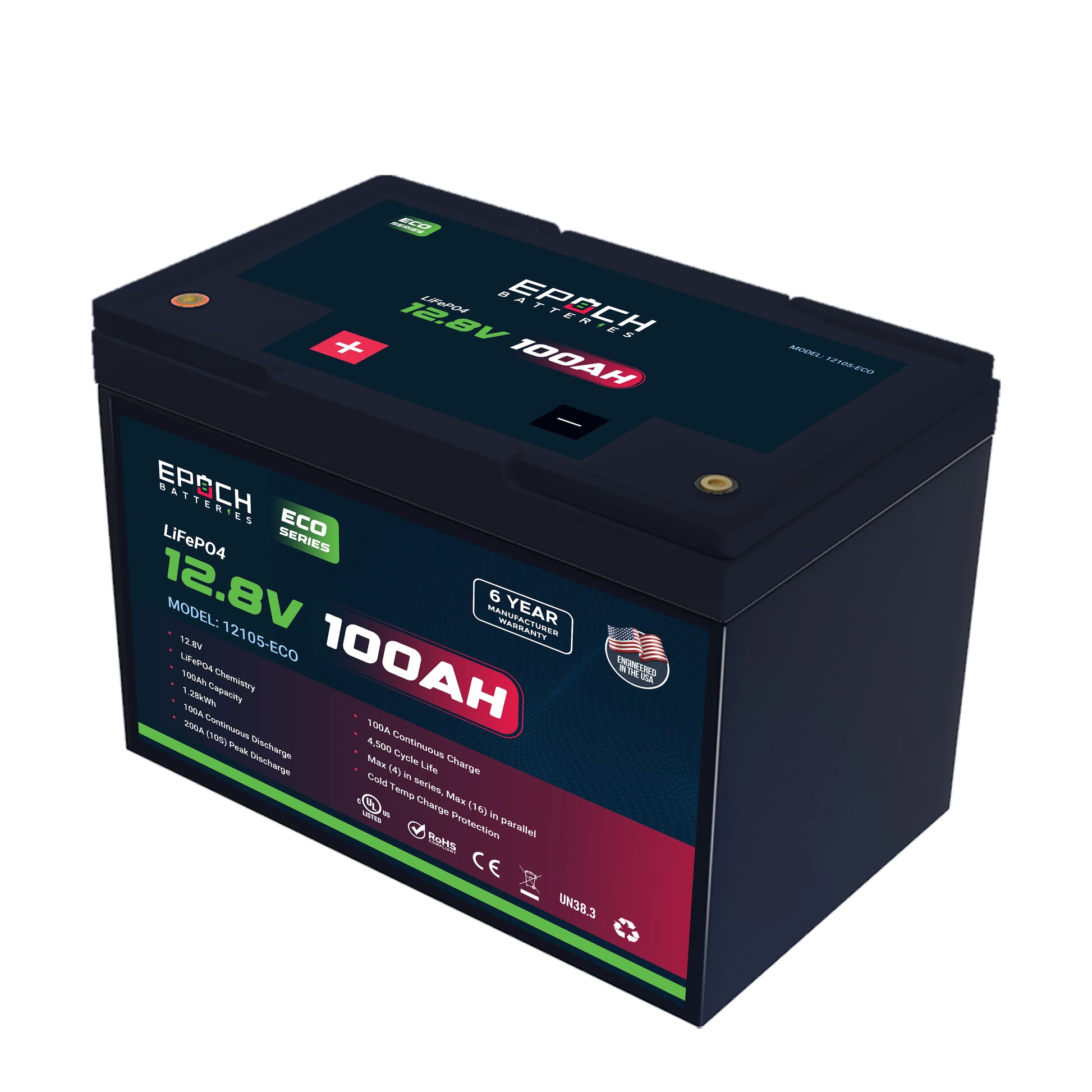

EPOCH 12V 100Ah Eco Series Battery
$299.00
Regular price
$299.00
Sale price
$299.00
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Low stock! Only 4 left
12V 100Ah Eco Series LiFePO4 Battery
- LiFePO4 Chemistry - Deep Cycle Battery
- Group 24: L10.25" x W6.75" x H9.00"
- Low-Temperature cut-off (Charge Protection)
- Built-in Smart Battery Management System (BMS)
- Advanced BMS system with 20+ safety features built in
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (16) in Parallel up to 20.48 kWh
- 4,500+ Cycle life & Maintenance-free
- 6 Year Manufacturer Warranty
Specifications
Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4
Current
Ah Capacity: 100
Max Continuous Discharge Amps: 100A
Max Charge Current Amps: 100A
Max Discharge Peak Current Amps: 300A (5 Seconds)
Series | Parallel: Max (4) in Series, Max (16) in Parallel
Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Weights & Dimensions
Weight: 21 (LBS)
Dimensions
Length: 10.25 (inches)
Width: 6.75 (inches)
Height: 9 (inches)
Recommended Charging Settings
Maximum Continuous Charge Current: 250A
Bulk/Absorption: 14.2V-14.4V
Absorption End Condition: Stop when charge current ≤ C/20 or 15 min max
Float Voltage: Disabled (preferred) or 13.3V-13.6V
Re-bulk: 13.2V
Temperature Compensation: 0 mV/°C (none)
Equalization: Disabled
Battery Charge Temperature Range: 0°C (32°F) / 55°C (131°F)
BMS High Voltage Cutoff: 14.6V
SoC Recalibration: 14.6V
