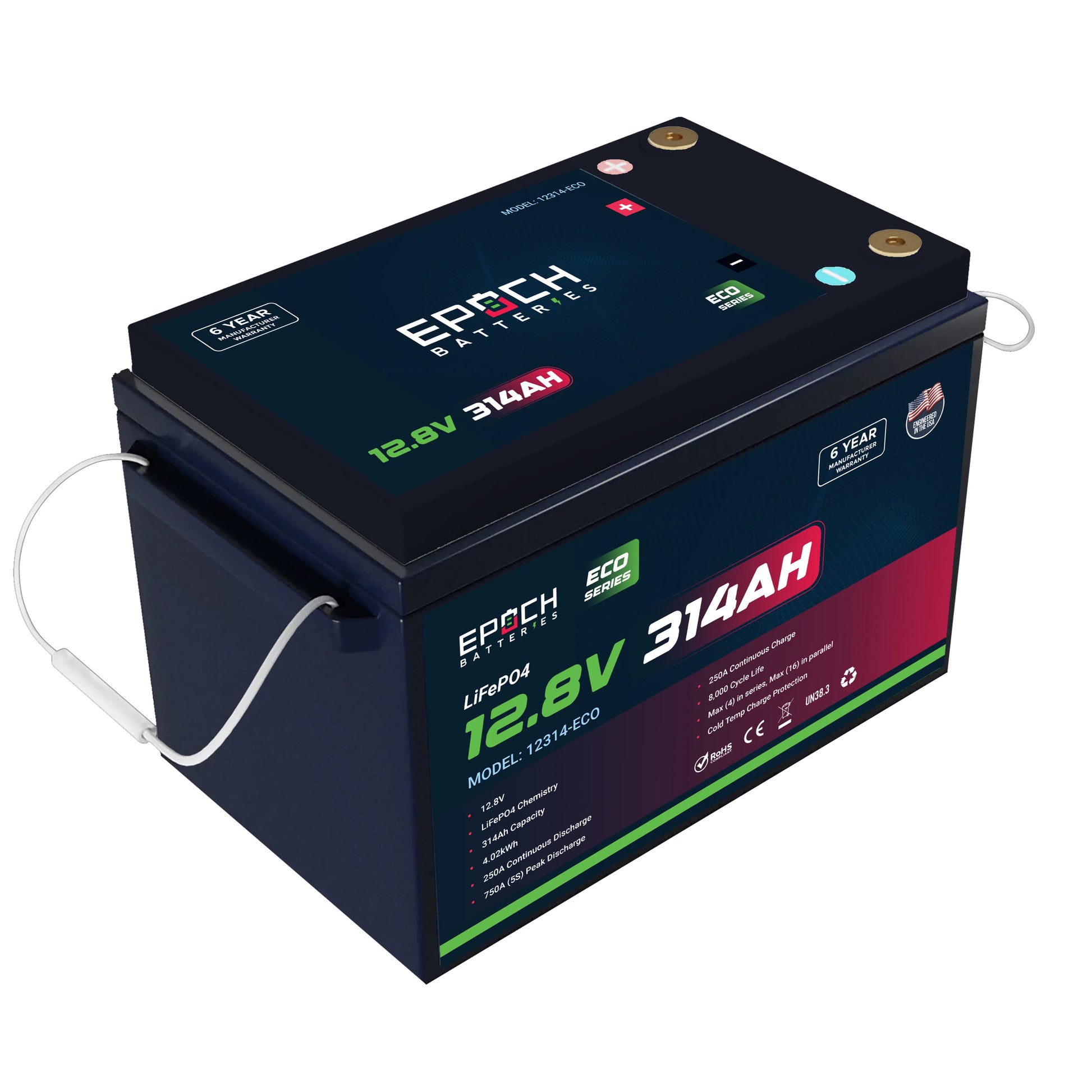

EPOCH 12V 314Ah Eco Series Battery
$638.57
Regular price
$638.57
Sale price
$638.57
Regular price
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Sorry, it's out of stock.
But we can let you know when it's back in.
Out of stock
EPOCH 12V 314Ah Eco Series LiFePO4 Battery
- LiFePO4 Chemistry - Deep Cycle Battery
- L15.5" x W7.63" x H10.5"
- Low-Temperature cut-off (Charge Protection)
- Built-in Smart Battery Management System (BMS)
- Advanced BMS system with 20+ safety features built in
- Over charge and over discharge protection
- Over current and short circuit protection
- High & low temperature disconnects
- Max (4) in Series up to 48V
- Max (16) in Parallel up to 64.3 kWh
- 8,000+ Cycle life & Maintenance-free
- 6 Year Manufacturer Warranty
Specifications
Configuration
Cell Configuration: 4S1P
Chemistry: LiFePO4
Current
Ah Capacity: 314Ah
Max Continuous Discharge Amps: 250A
Max Charge Current Amps: 250A
Max Discharge Peak Current Amps: 750A (5 Seconds)
Series | Parallel: Max (4) in Series, Max (16) in Parallel
Voltage
Voltage: 12.8V
Max Charge Voltage: 14.6V
Operating Voltage Range: 10.0 - 14.6V
Temperature
Charge Temp Range: 0°C (32°F) / 55°C (131°F)
Discharge Temp Range: -20°C (-4°F) / 60°C (140°F)
Storage Temp: 0°C (32°F) / 35°C (95°F)
Weights & Dimensions
Weight: 57 (LBS)
Dimensions
Length: 13.75" @ Base, 15.5" @ Handles (inches)
Width: 7.63" (inches)
Height: 10.0", 10.5' with Terminal Bolts (inches)
