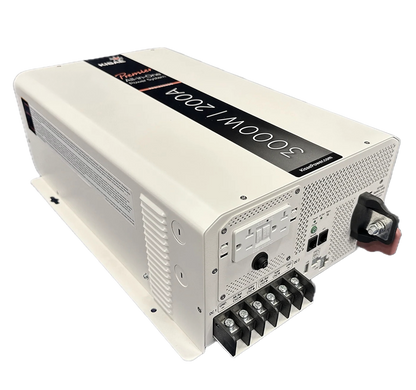

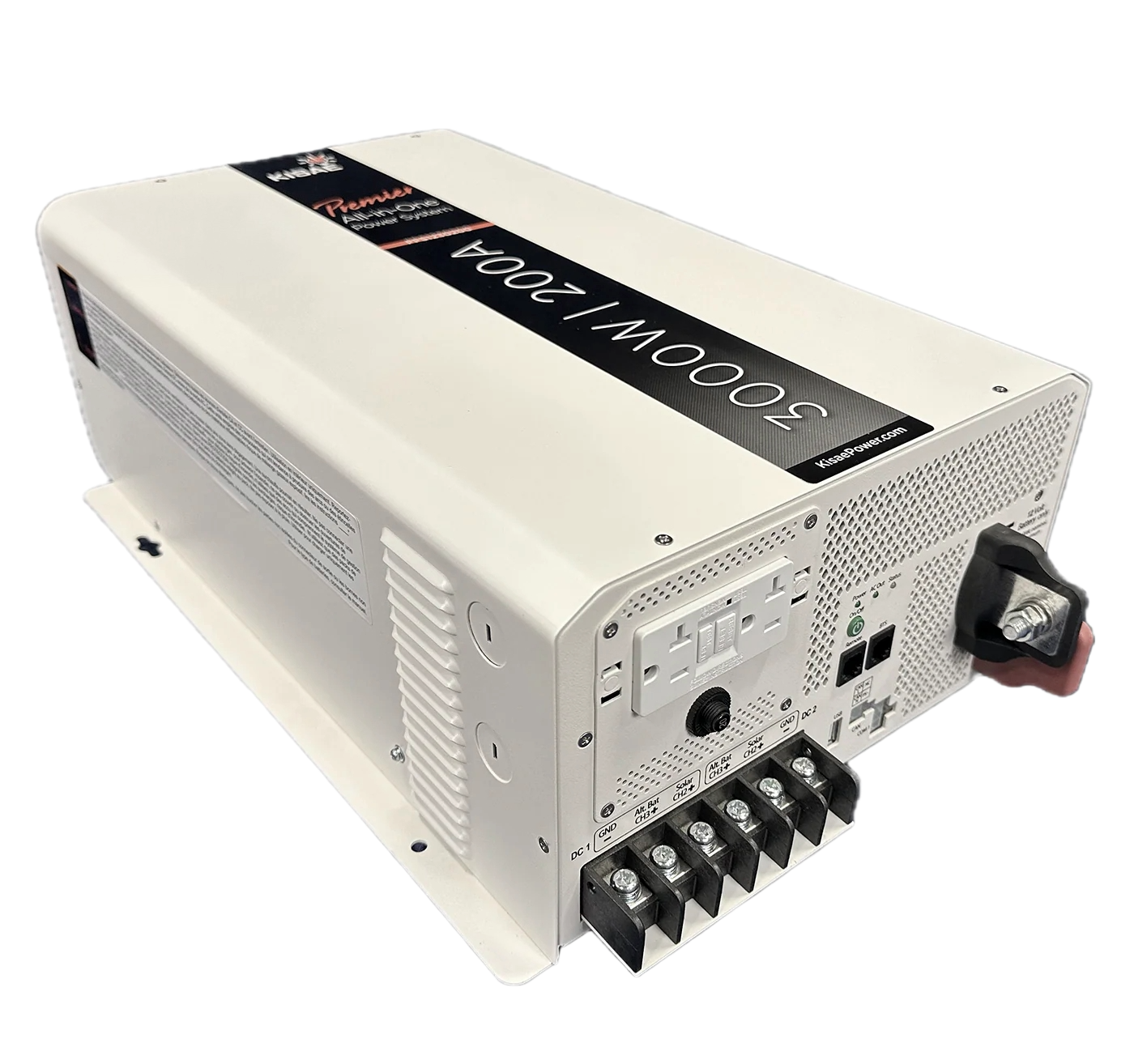

Kisae All-In-One 3000W Bi-Directional Inverter with 100A AC Charger & 2*50A DC Charger

Premier all-in-one power system for Canadian off-grid, RV, and marine energy setups.
The KISAE PPS1230200 combines a 3000W pure sine wave inverter, 100A AC charger, dual 50A DC-DC chargers, and an integrated PV controller into one powerful bi-directional unit. Built for versatility and reliability, this system ensures seamless power transfer, smart charging, and compatibility with multiple energy sources—shore power, alternator, and solar PV.

With true sinewave output (<5% THD) and fast transfer time (<30ms), it’s ideal for sensitive electronics, off-grid systems, and backup power applications. Certified to UL and CSA standards, the PPS1230200 is ready for Canadian installations.

Key Features

• All-in-One System: 3000W inverter + 200A charger (100A AC + 2×50A DC inputs).

• Dual Charging Options: Supports alternator and solar PV inputs with independent configuration.

• Smart Multi-Stage Charging: Bulk, Absorption, Float, and Recharge stages for Gel, AGM, Flooded, Lithium, and programmable chemistries.

• Bi-Directional Operation: Inverter + charger with integrated 30A AC transfer switch.

• True Sinewave Output: Safe for sensitive electronics, appliances, and tools.

• Advanced Controls: CAN bus communication, optional Bluetooth, and external remote panel support.

• Fast Switching: <30ms transfer time ensures uninterrupted operation.

• Regulatory Compliant: TUV-marked, UL & CSA standards, FCC Part 15 Class B.

Specifications

• Inverter Output Power: 3000W continuous / 6000W peak

• AC Output Voltage/Frequency: 120V AC, 60Hz

• Output Current: 25A (continuous), 50A (peak)

• Efficiency: 90%

• AC Input Voltage Range: 104–132V AC (60Hz)

• Transfer Relay Rating: 30A

• DC Input Range (Battery/Alternator): 10.5–32V DC

• DC Input Range (PV): 15–100V DC, MPPT efficiency >98%

• Charging Current: 100A AC + 2×50A DC (200A total)

• Battery Voltage Range: 13.8–14.8V (charging), 13.0–14.0V (float), programmable recharge 12.8–14.0V

• Protection: Overload, under/overvoltage, short circuit, over-temperature

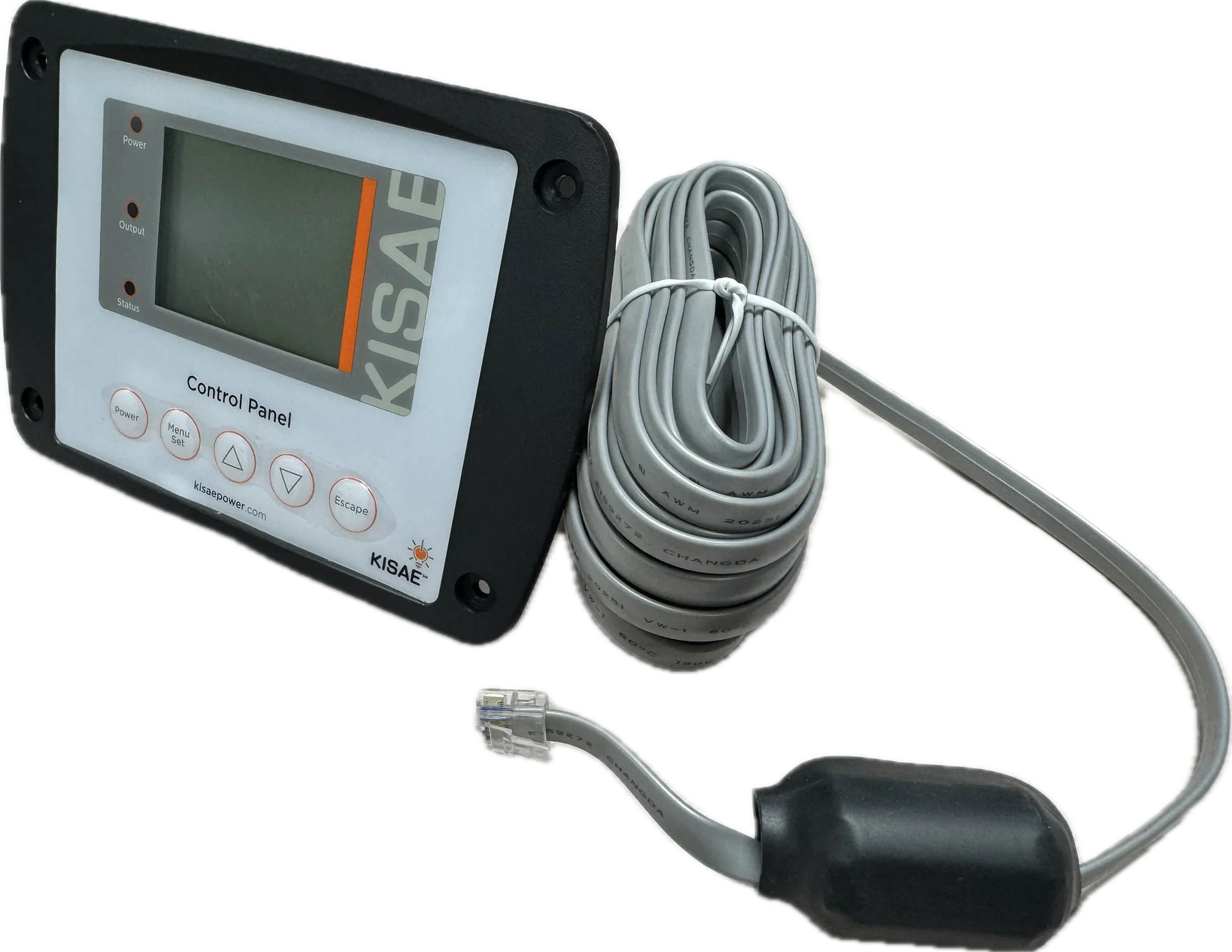

• Display: LCD with backlight and 25' cable, numerical and graphical indicators, fault codes

• Size: 19.7” × 12.2” × 6.2” (500 × 307 × 157 mm)

• Weight: 32.5 lbs (14.7 kg)

• Certifications: TUV, UL, CSA
