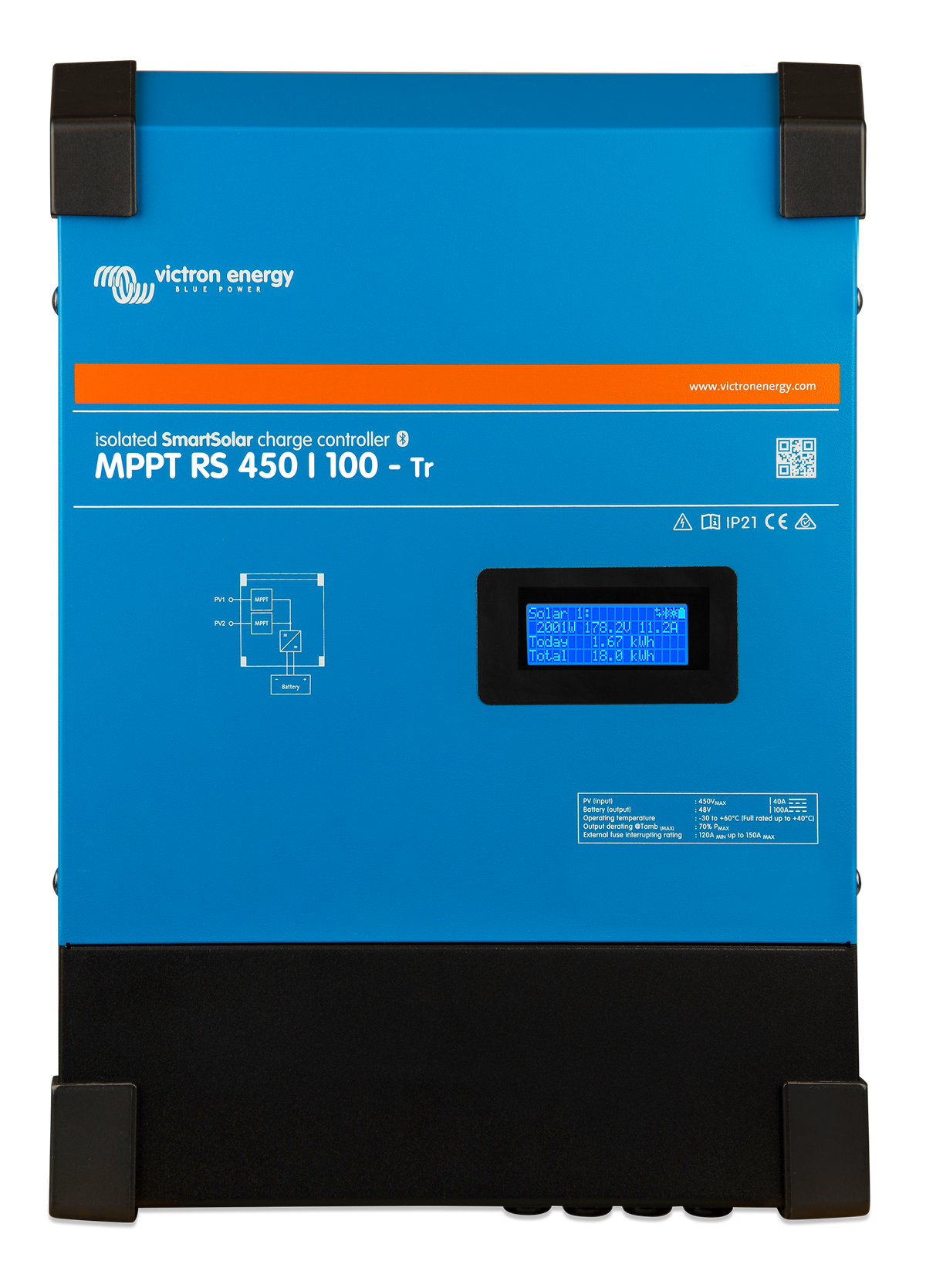

SmartSolar MPPT RS 450/100-TR Victron

The Victron SmartSolar MPPT RS 450/100 is a high voltage solar charge controller for 48V systems, taking up to 450 V of PV input and delivering up to 100 A of charge current. It has two independent MPPT trackers, full galvanic isolation between PV and battery for extra safety, and a built-in display plus Bluetooth for easy setup and monitoring.

• Battery voltage: 48 V
• Rated charge current: 100 A
• Maximum charge power: 5.8 kW at 57.6 V
• Maximum PV voltage: 450 V (120 V start-up, 65 to 450 V MPPT range)
• Number of MPPT trackers: 2 (16 A operating / 20 A short circuit per tracker)
• Max DC output charging power: 4000 W per tracker, 5760 W total
• Maximum efficiency: 96%
• Isolated PV connections with PV isolation resistance monitoring
• Communication: VE.Direct, VE.Can and Bluetooth
• Parallel operation: up to 25 units with VE.Can
• Battery temperature sensor included
• Operating temperature: -40 to +60 °C (fan assisted cooling)
• Protection category: IP21
• Weight: 7.9 kg (17.42 lb)
• Dimensions (h x w x d): 440 x 313 x 126 mm
• Part number: SCC145110512
