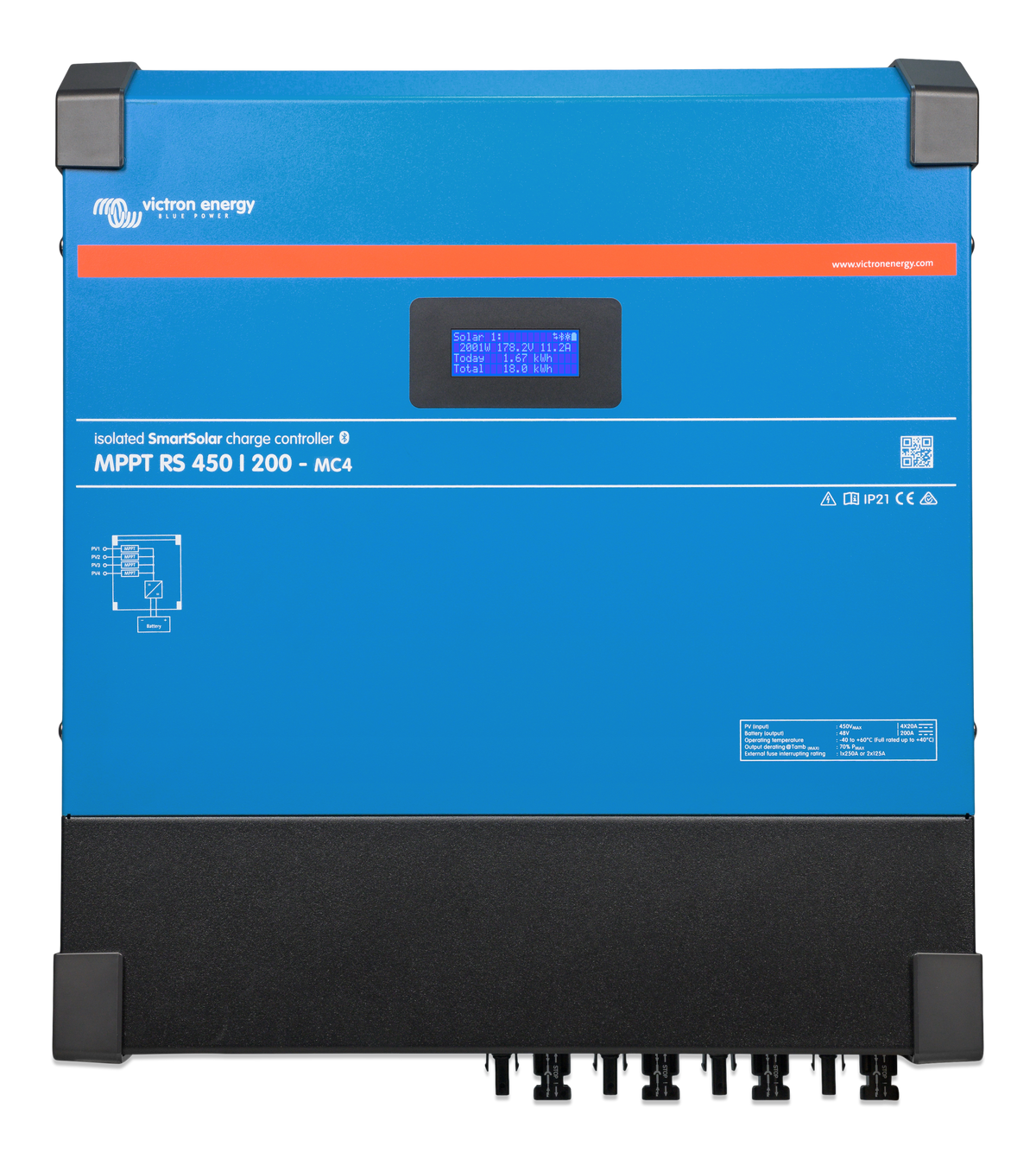

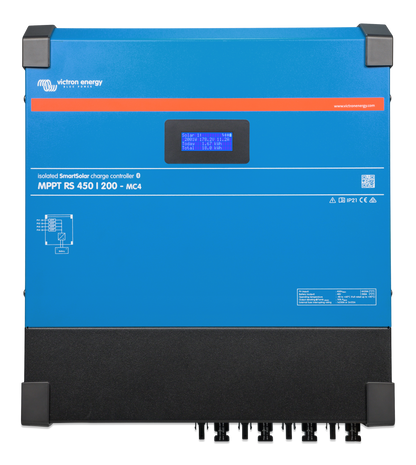

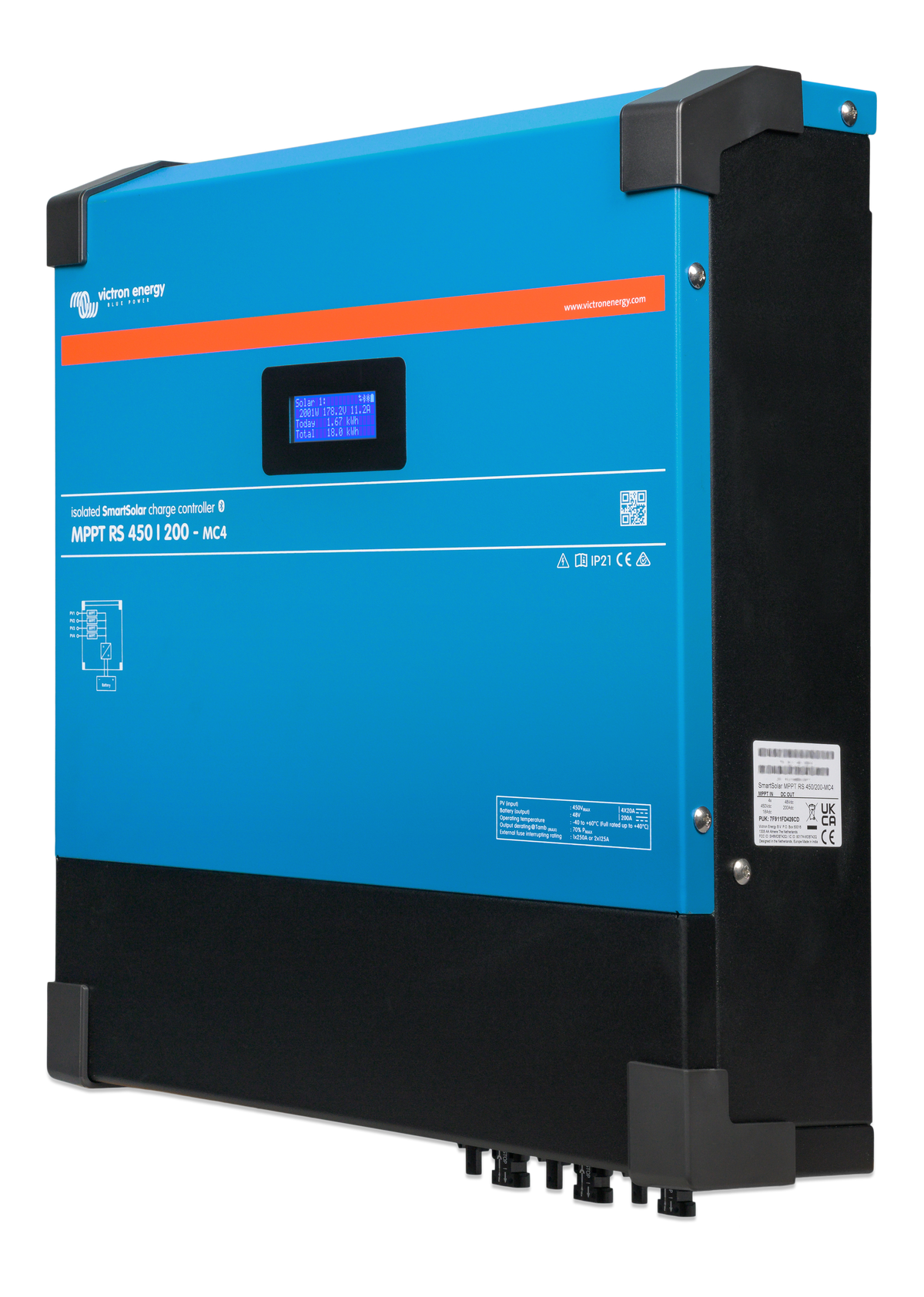

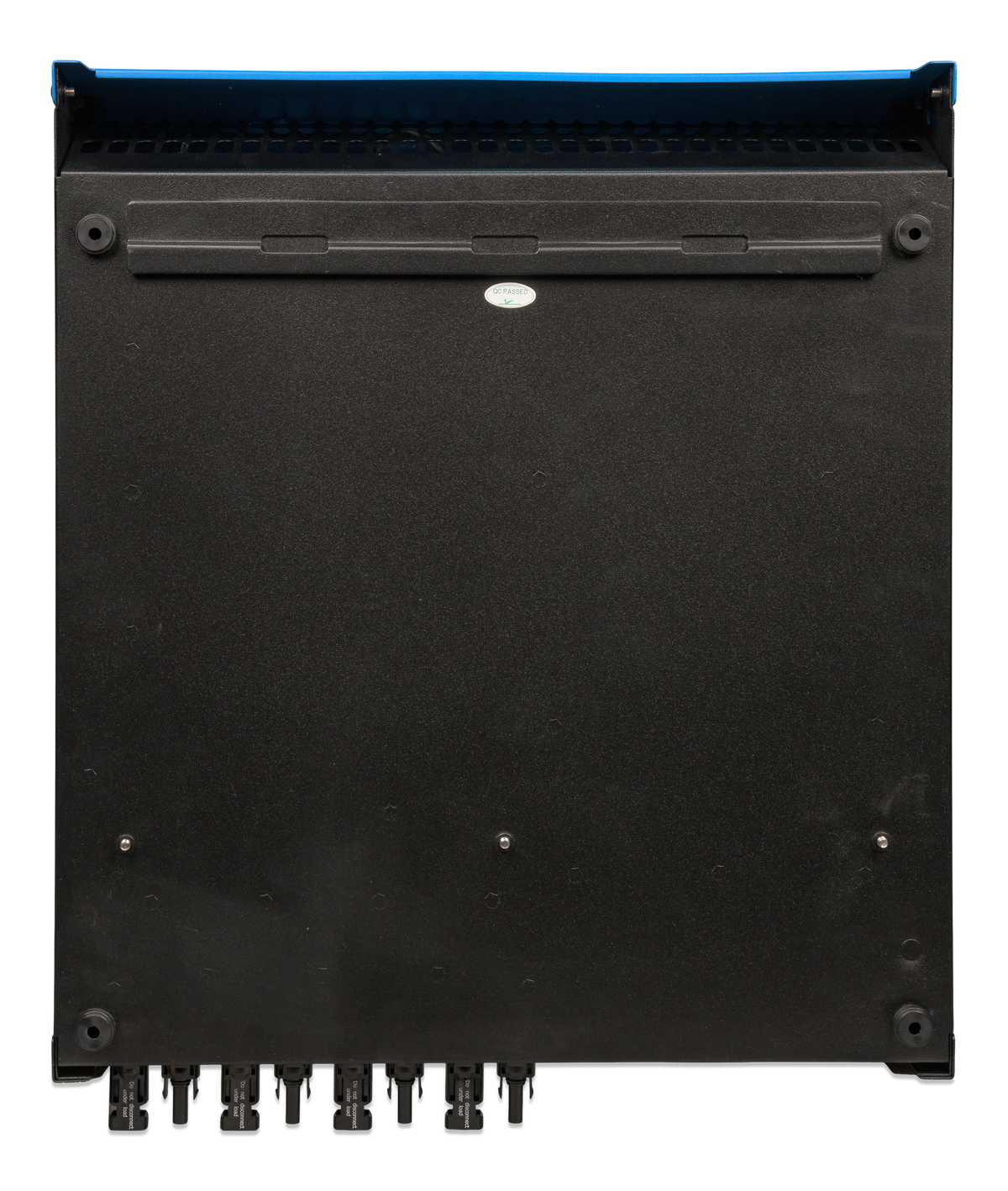

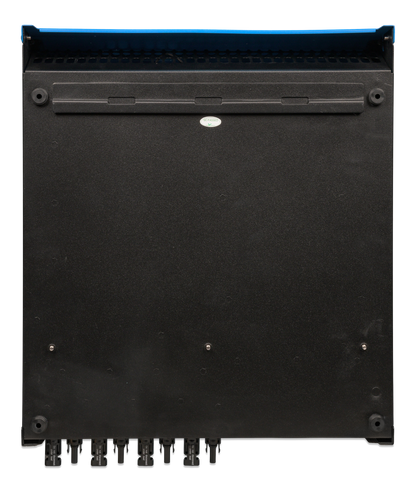

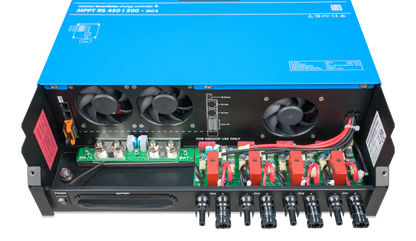

SmartSolar MPPT RS 450/200-TR (48V only) Victron

The Victron SmartSolar MPPT RS 450/200 is a powerhouse solar charge controller for 48V systems, taking up to 450 V of PV input and delivering up to 200 A of charge current. Four independent MPPT trackers let you get creative with your array layout, and full galvanic isolation between PV and battery adds an extra layer of safety.

• Battery voltage: 48 V
• Rated charge current: 200 A
• Maximum charge power: 11.5 kW at 57.6 V
• Maximum PV voltage: 450 V (120 V start-up, 65 to 450 V MPPT range)
• Number of MPPT trackers: 4 (16 A operating / 20 A short circuit per tracker)
• Max DC output charging power: 4000 W per tracker, 11520 W total
• Maximum efficiency: 96%

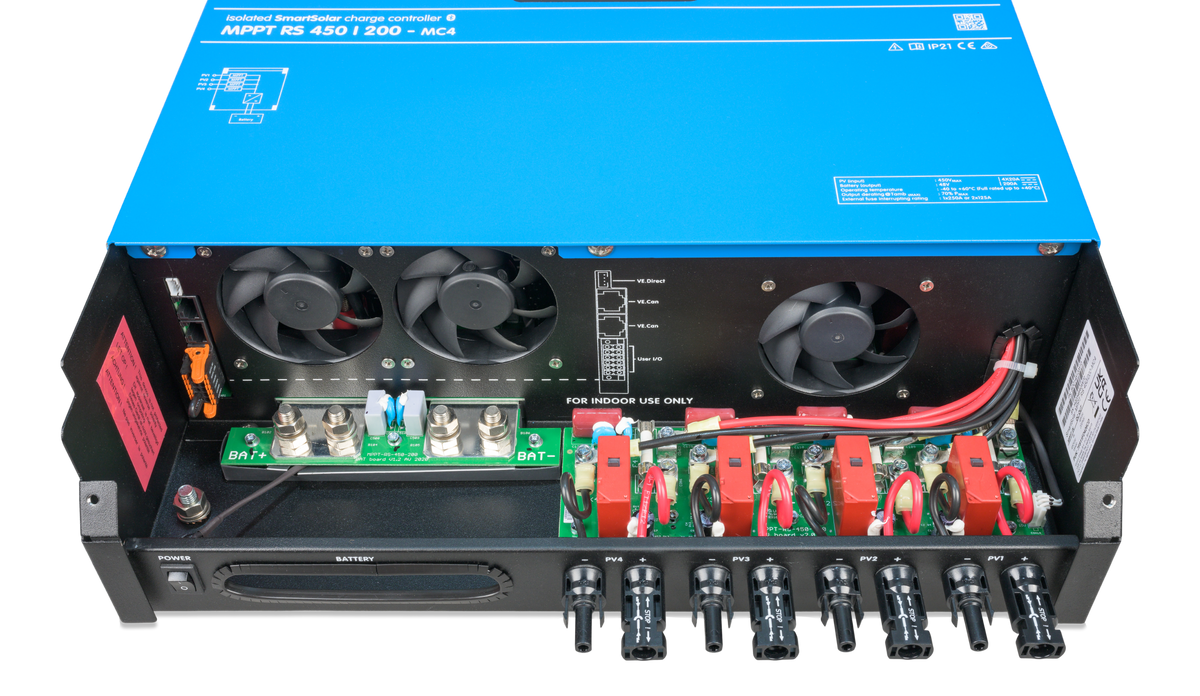

• Isolated PV connections with PV isolation resistance monitoring
• Communication: VE.Direct, VE.Can and Bluetooth
• Parallel operation: up to 25 units with VE.Can

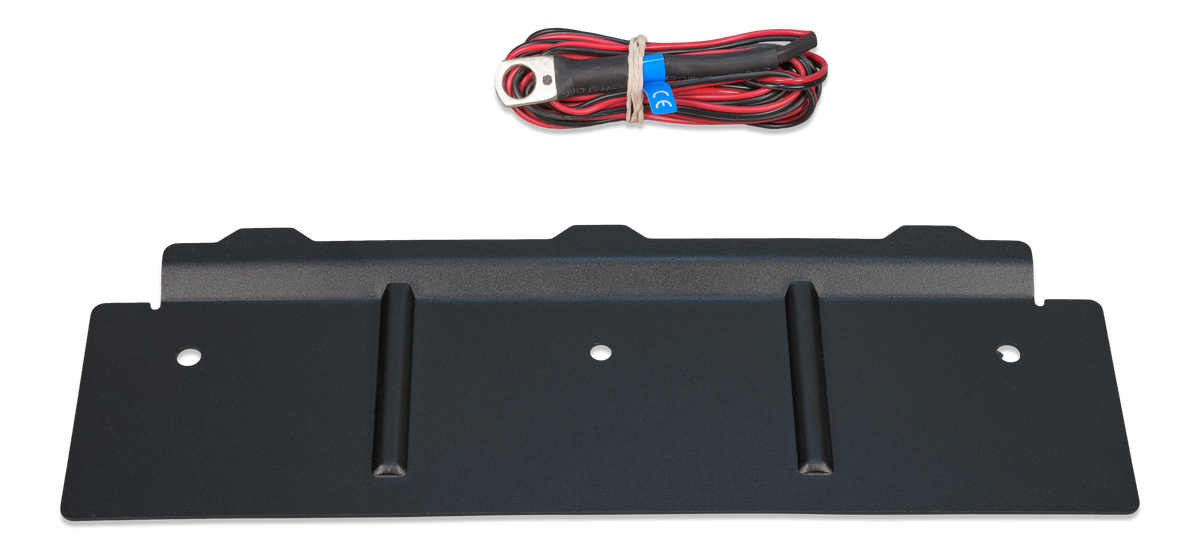

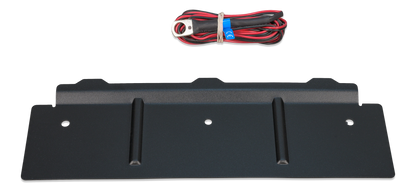

• Battery temperature sensor included
• Operating temperature: -40 to +60 °C (fan assisted cooling)
• Protection category: IP21
• Weight: 13.7 kg (30.20 lb)
• Dimensions (h x w x d): 487 x 434 x 146 mm
