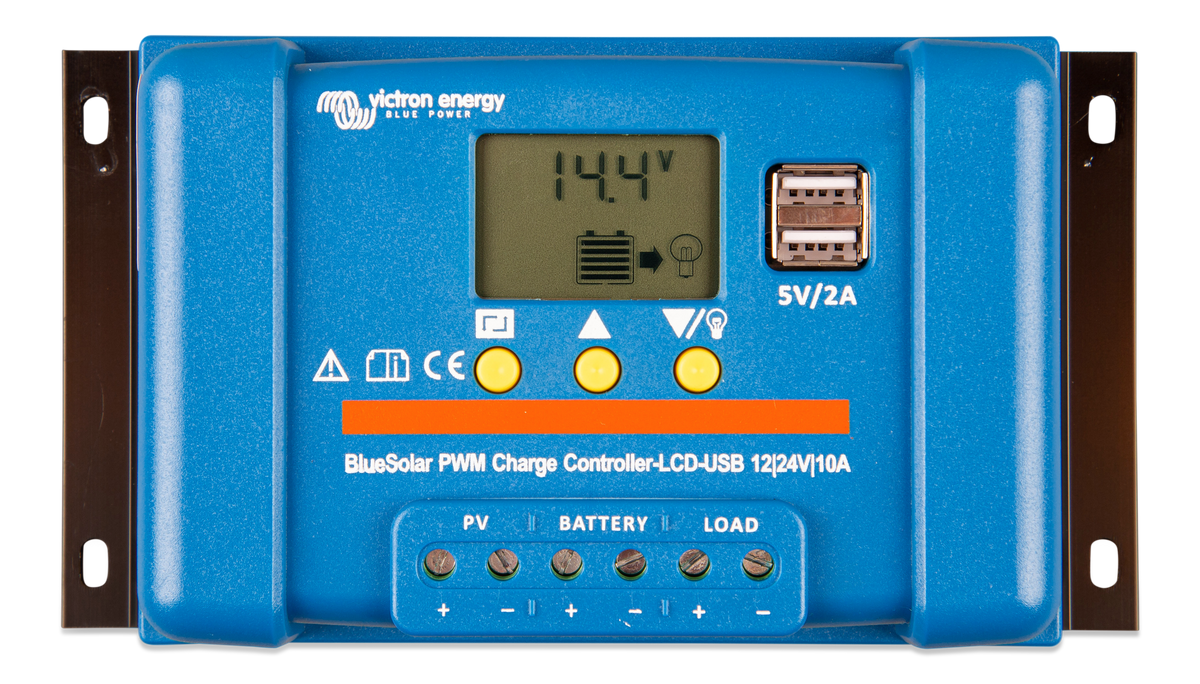

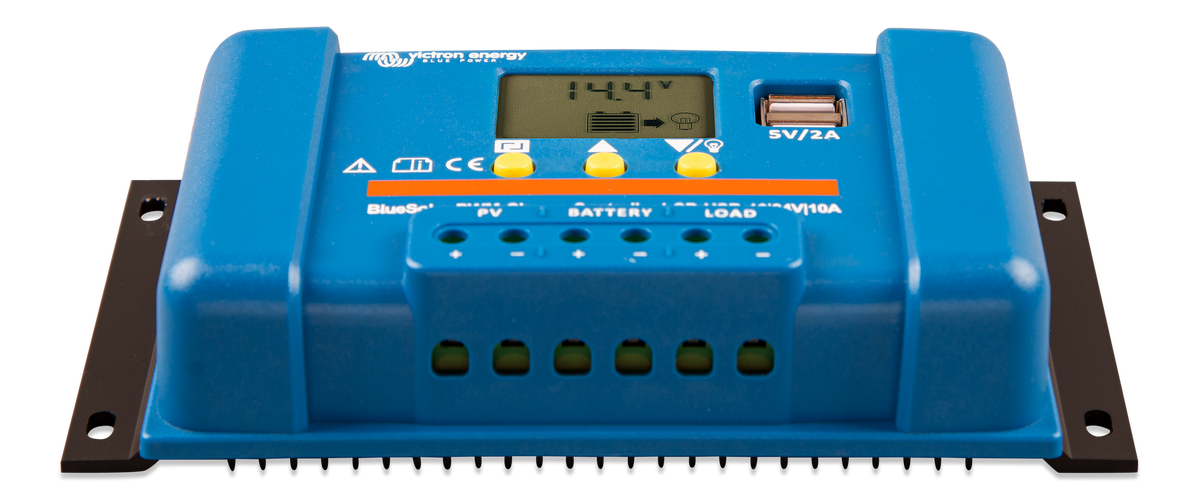

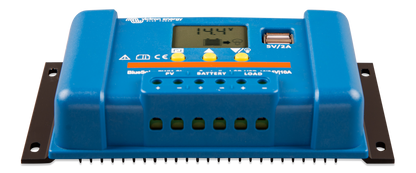

Victron 10 Amp 12/24 volt PWM Solar Charge Controller

The Victron BlueSolar PWM-LCD&USB 12/24V-10A is a simple, budget friendly solar charge controller for small 12V or 24V systems. It has a built-in LCD for status and setup, a load output with low voltage disconnect and day/night timer, plus two USB ports for charging phones and gadgets.

• Battery voltage: 12/24 V with automatic system voltage detection
• Rated charge current: 10 A
• Maximum solar voltage: 28 V / 55 V (12 V / 24 V systems)
• Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 (with internal BMS)
• Load output: manual control, low voltage disconnect and timer
• Two 5 V USB outputs (2 A total)
• Self-consumption: less than 10 mA
• Operating temperature: -35 to +60 °C (full load)
• Protection class: IP20
• Terminal size: 6 mm² (AWG10)
• Weight: 0.15 kg (0.33 lb)
• Dimensions (h x w x d): 96 x 169 x 36 mm (3.8 x 6.7 x 1.4 in)
• Part number: SCC010010050
