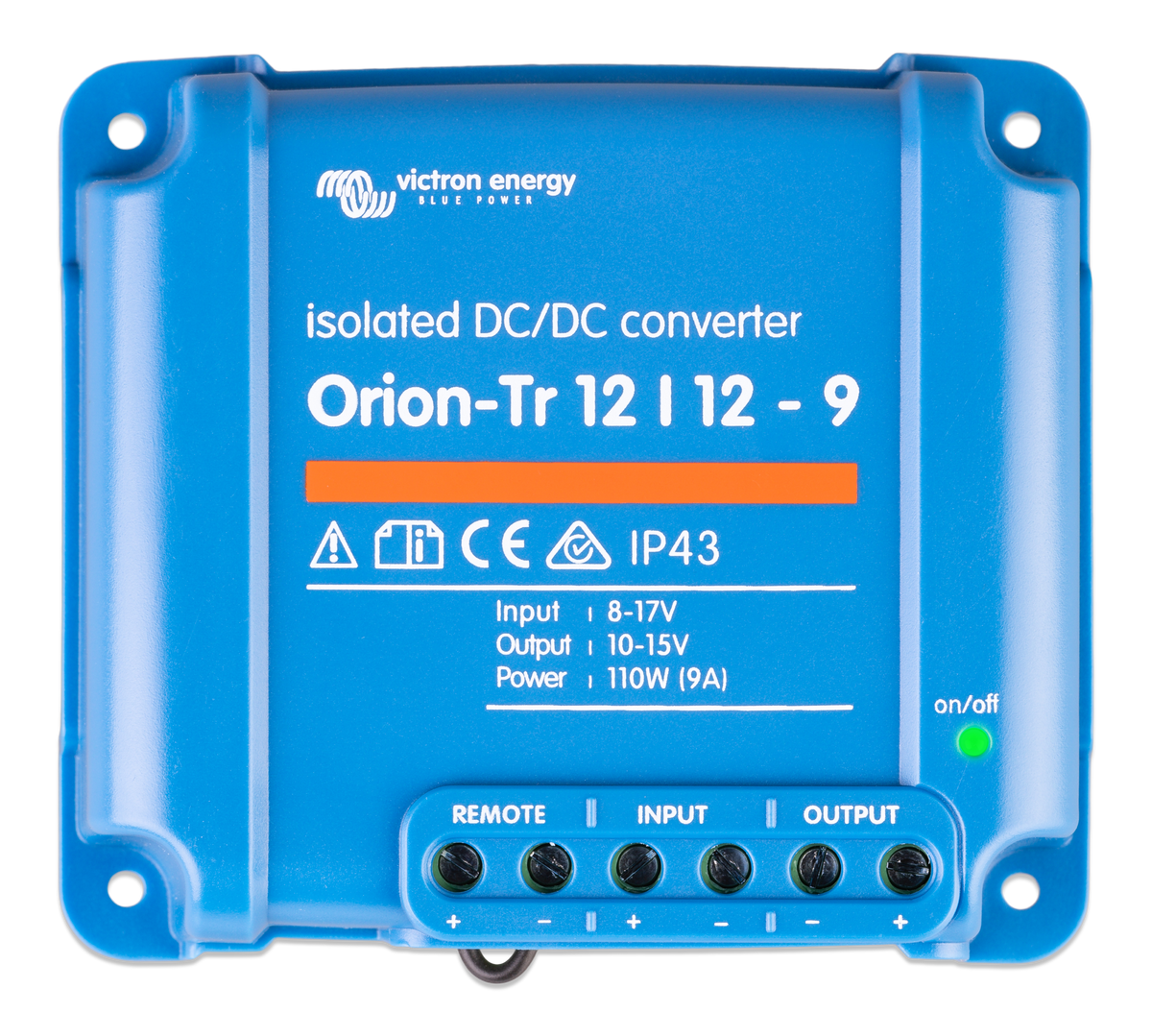

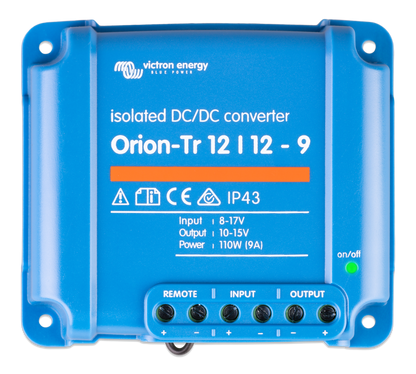

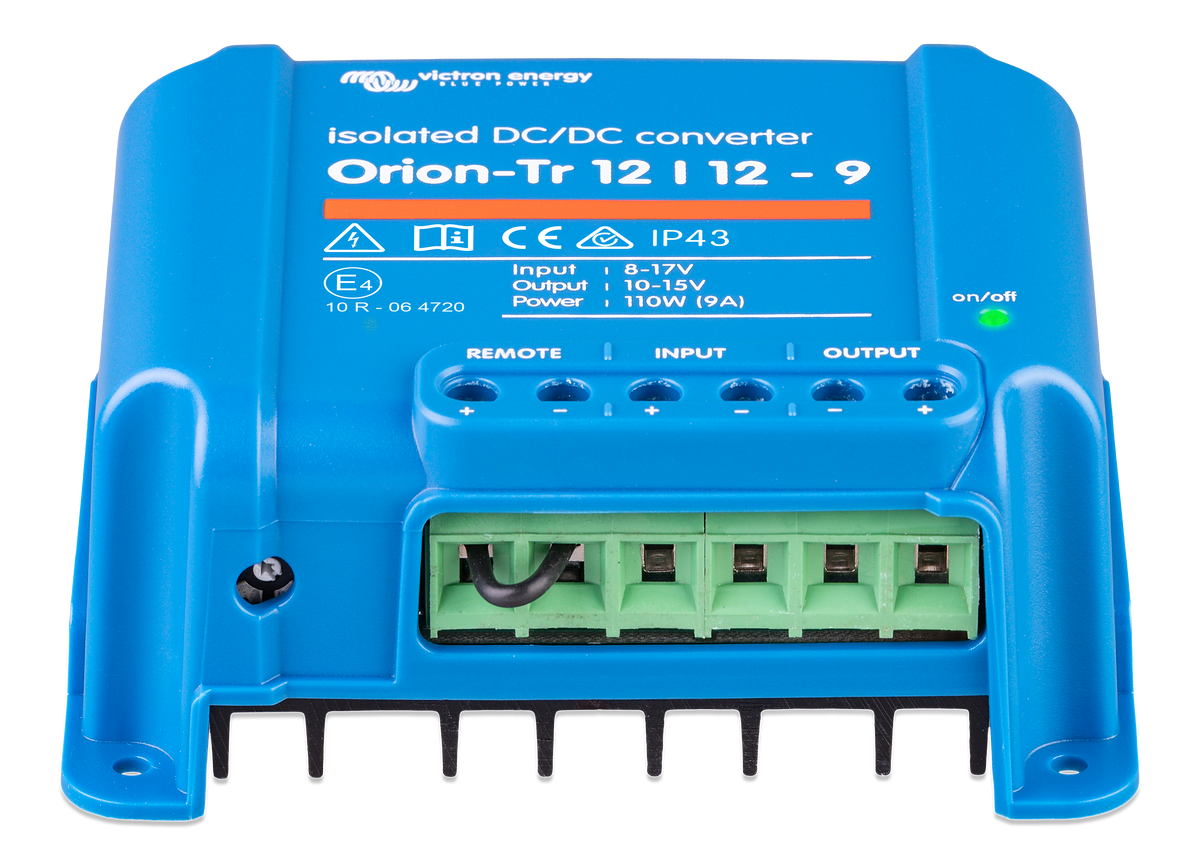

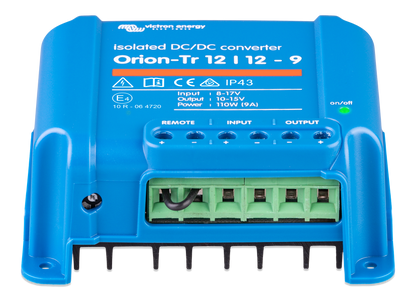

Victron Orion-TR 12/12-9A (110W) DC-DC Charger; Isolated

The Victron Orion-Tr 12/12-9 is an isolated DC-DC converter that delivers a clean, stable 12V output from a 12V source, even when the input voltage swings. Full galvanic isolation keeps sensitive electronics protected, and the remote on/off terminal makes it easy to switch without a heavy duty switch in the input wiring.

• Input voltage range: 8 to 17 V
• Nominal output voltage: 12.2 V (adjustable 10 to 15 V)
• Continuous output current: 9 A at 25 °C (12.5 A max for 10 s)
• Continuous output power: 110 W at 25 °C, 85 W at 40 °C
• Efficiency: 87%
• Galvanic isolation: 200 VDC between input, output and case
• Operating temperature: -20 to +55 °C (derate 3% per °C above 40 °C)
• Screw terminals, max cable 6 mm² (AWG10)
• Weight: 0.42 kg (0.93 lb)
• Dimensions (h x w x d): 100 x 113 x 47 mm (4.0 x 4.5 x 1.9 in)
• Note: not intended for battery charging (see Orion-Tr Smart for that)
• Part number: ORI121210110
