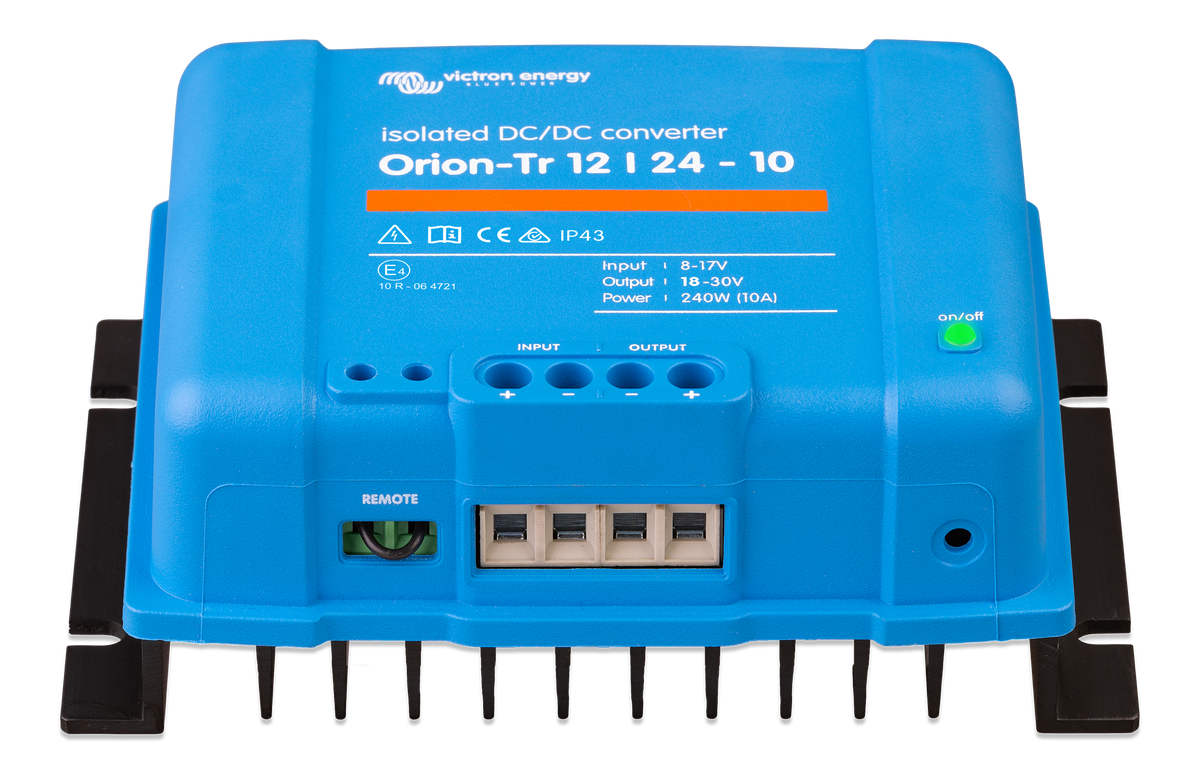

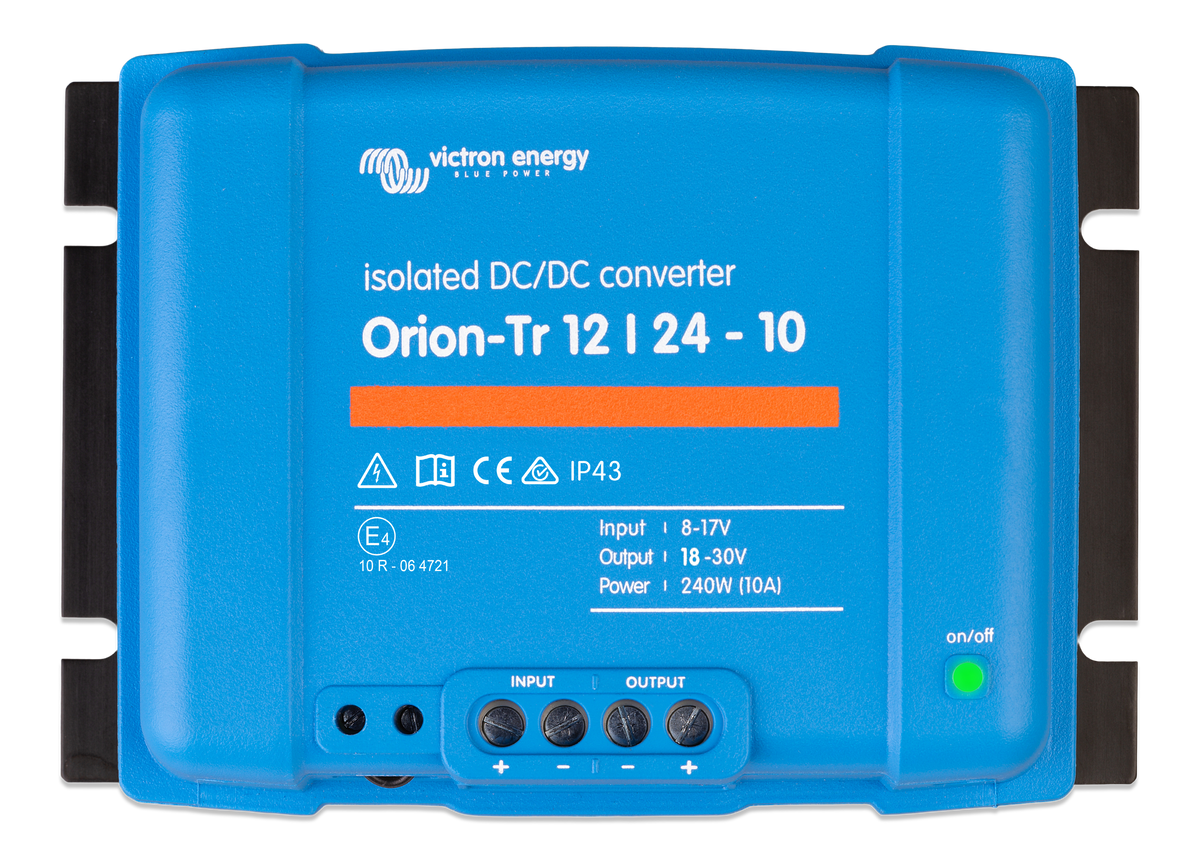

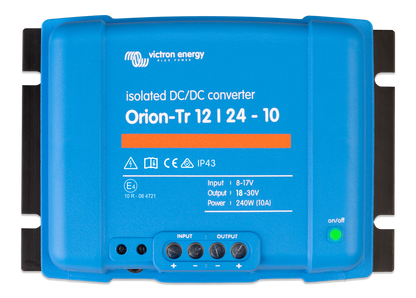

Victron Orion-TR 12/24-10A (360W) DC-DC Charger; Isolated

Need to run 24V gear off a 12V system? The Victron Orion-Tr 12/24-10 is an isolated DC-DC converter that steps 12V up to a steady 24V, with full galvanic isolation between input, output and case. It's short circuit proof, can be paralleled for more current, and has a handy remote on/off terminal so you can switch it with the engine run signal.

• Input voltage range: 8 to 17 V
• Nominal output voltage: 24.2 V (adjustable 18 to 30 V)
• Continuous output current: 10 A at 40 °C (15 A max for 10 s)
• Continuous output power: 240 W at 40 °C, 280 W at 25 °C
• Efficiency: 88%
• Galvanic isolation: 200 VDC between input, output and case
• Operating temperature: -20 to +55 °C (derate 3% per °C above 40 °C)
• Screw terminals, max cable 16 mm² (AWG6)
• Weight: 1.3 kg (2.87 lb)
• Dimensions (h x w x d): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 in)
• Note: not intended for battery charging (see Orion-Tr Smart for that)
• Part number: ORI122424110
