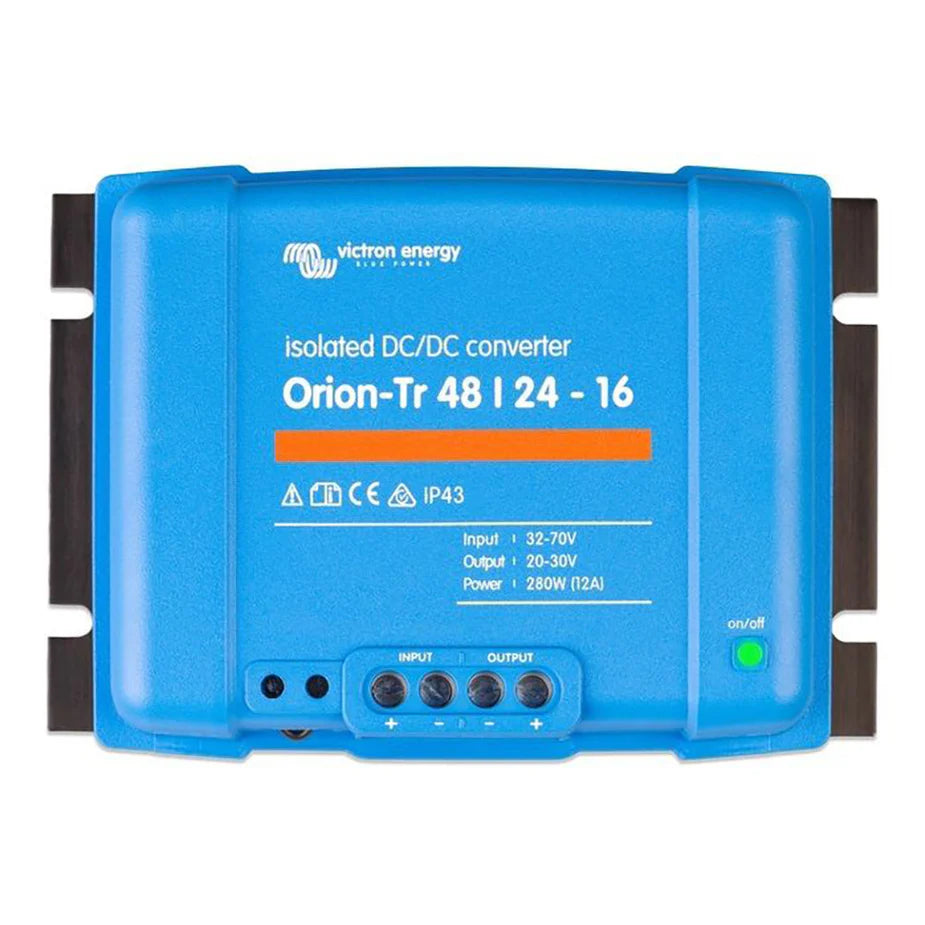

Victron Orion-Tr 48/24-16A Isolated DC-DC converter
$201.45
Regular price
$201.45
Sale price
$201.45
Regular price
$237.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Low stock! Only 3 left
Victron Energy ORI482441110 Orion-Tr 48/24-16A Isolated DC-DC converter
This is an isolated DC-DC converter that takes an input of 48 Volts and give an output of 24 Volts with a maximum current of 16 Amps. The actual output voltage is user adjustable between 20 and 30 Volts The nominal input voltage is 48 volts but it can be within the range of 40-60 Volts
- Input voltage range 40-60 Volts DC
- Output voltage 20-30 Volts DC (user adjustable with a potentiometer)
- Rated Power 380 Watts
- Galvanically isolated output
- Optional external remote on-off
- Datasheet
- Dimensions 5.1" x 7.3" x 2.8"
Part Number ORI482441110
|
Tech Tip This has a single stage output. If you are looking for a charger with three stage output and Bluetooth you can use any of our MPPT Solar Chargers as a Battery to Battery charger for 48 volts to 24 volts. |
