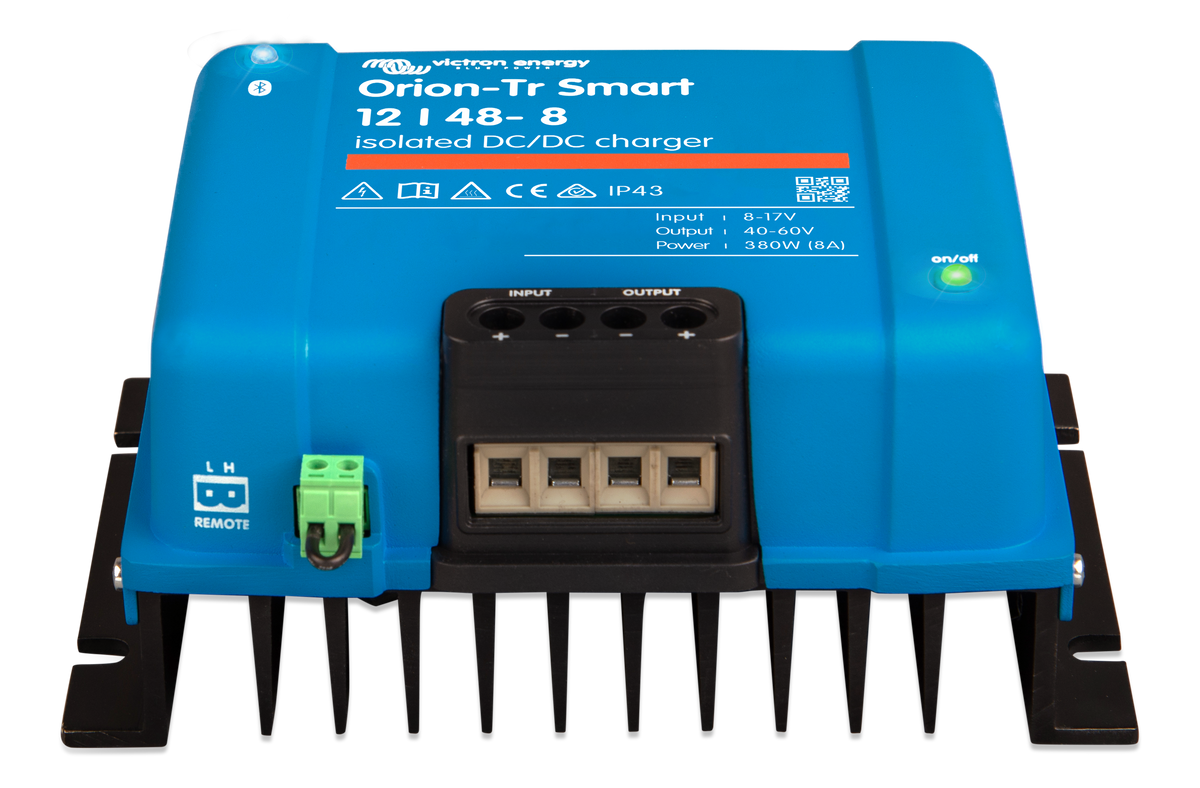

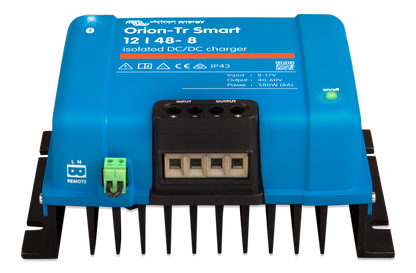

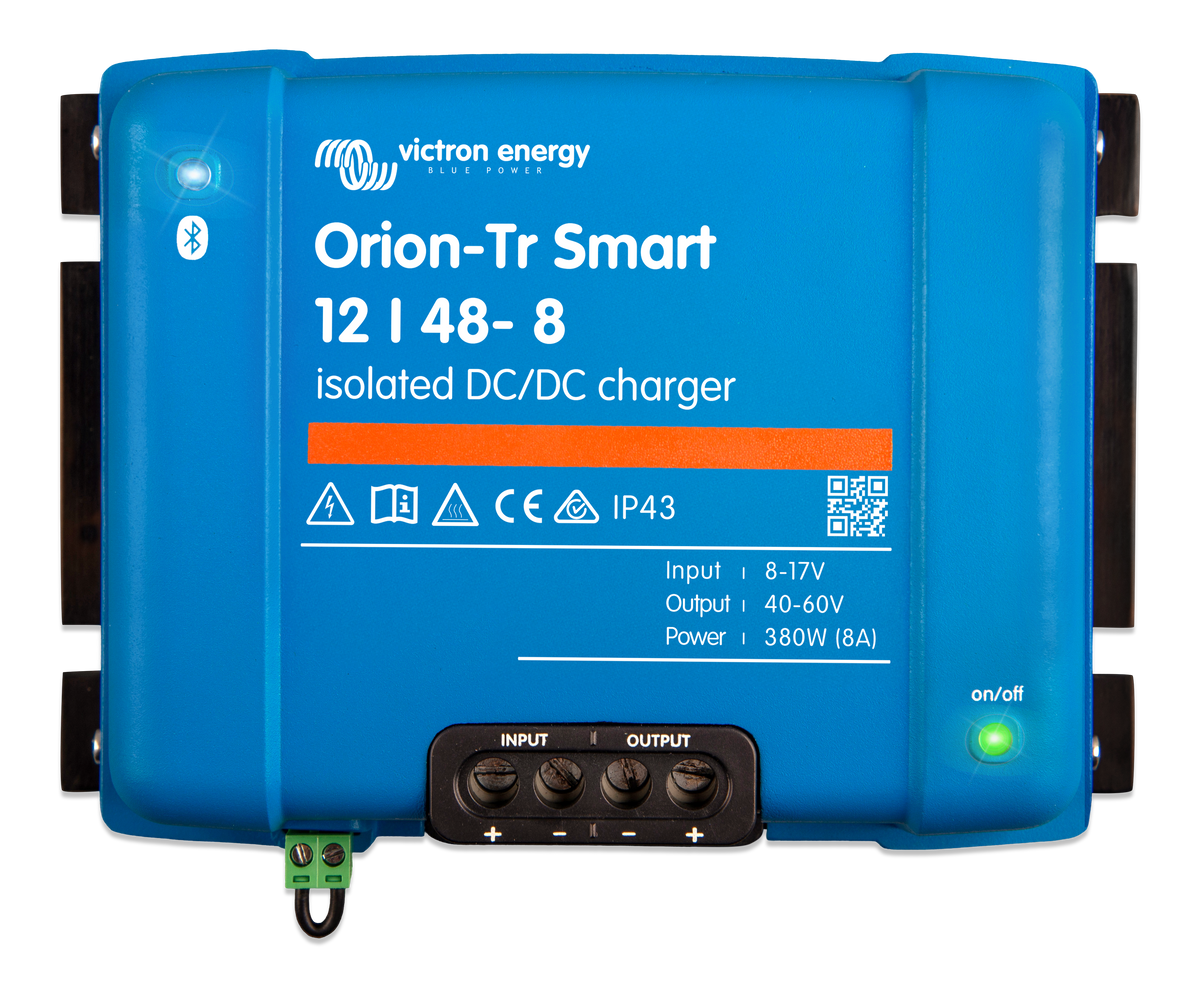

Victron Orion-TR Smart 12/48-8A (380W) DC-DC Charger; Isolated

The Victron Orion-Tr Smart 12/48-8 is an isolated DC-DC charger that boosts a 12V source up to charge a 48V battery bank. It has Bluetooth built in, so you can set it up and monitor it right from the VictronConnect app, and it can also be used as a regular power supply.

• Input voltage range: 8 to 17 V
• Nominal output voltage: 48.2 V (adjustable 40 to 60 V)
• Continuous output current: 8 A at 40 °C (15 A max for 10 s)
• Continuous output power: 380 W at 40 °C, 430 W at 25 °C
• Efficiency: 89%
• Galvanic isolation: 200 VDC between input, output and case
• Bluetooth setup and monitoring with VictronConnect
• Operating temperature: -20 to +55 °C (derate 3% per °C above 40 °C)
• Protection: IP43 (electronics), IP22 (connection area)
• Screw terminals, max cable 16 mm² (AWG6)
• Weight: 1.8 kg (3.97 lb)
• Dimensions (h x w x d): 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 in)
• Part number: ORI124838120
