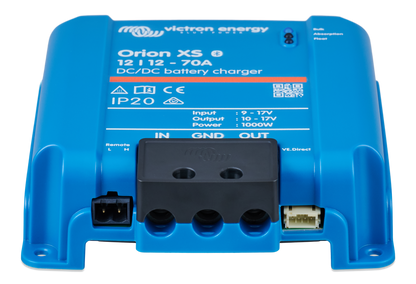

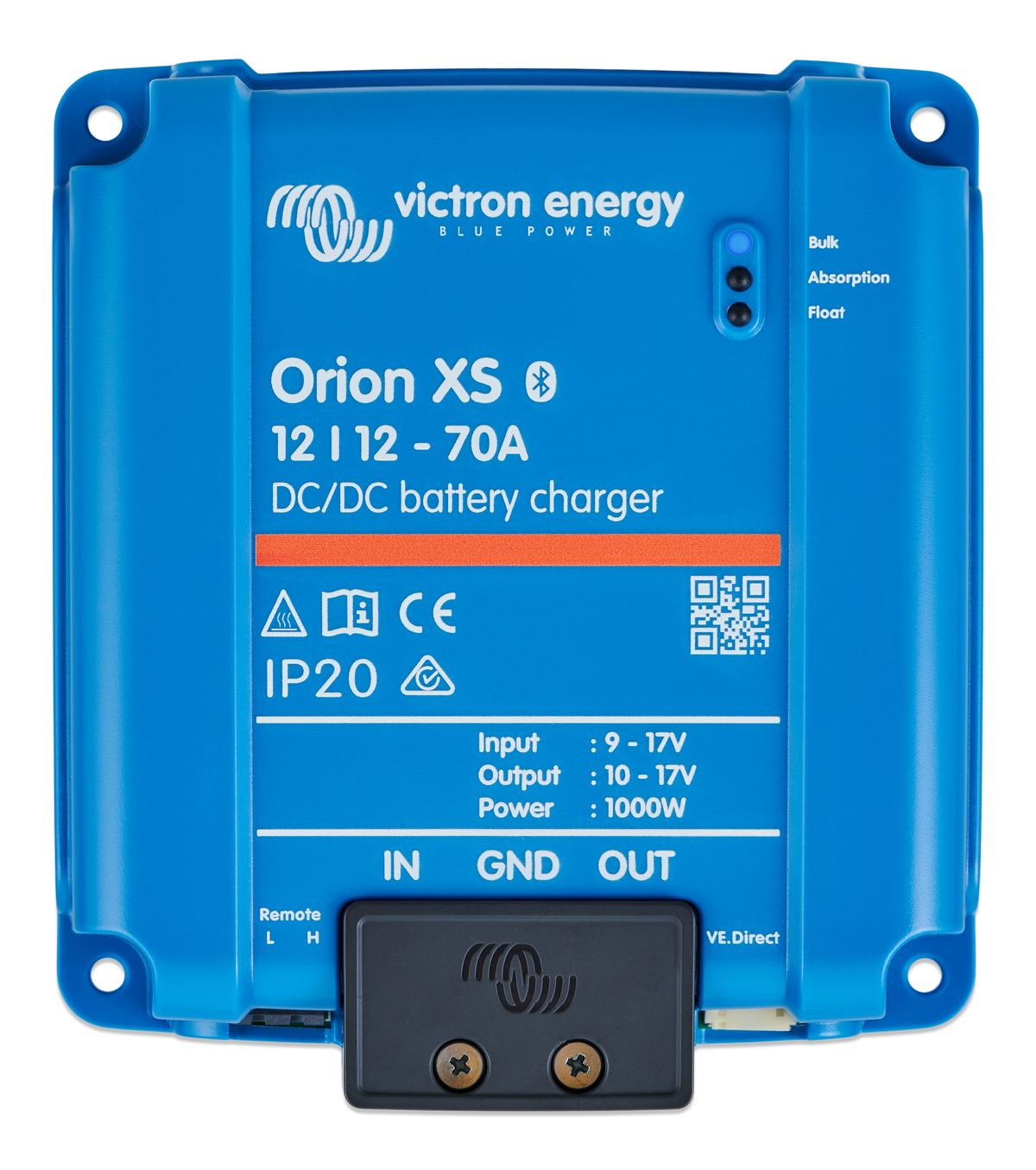

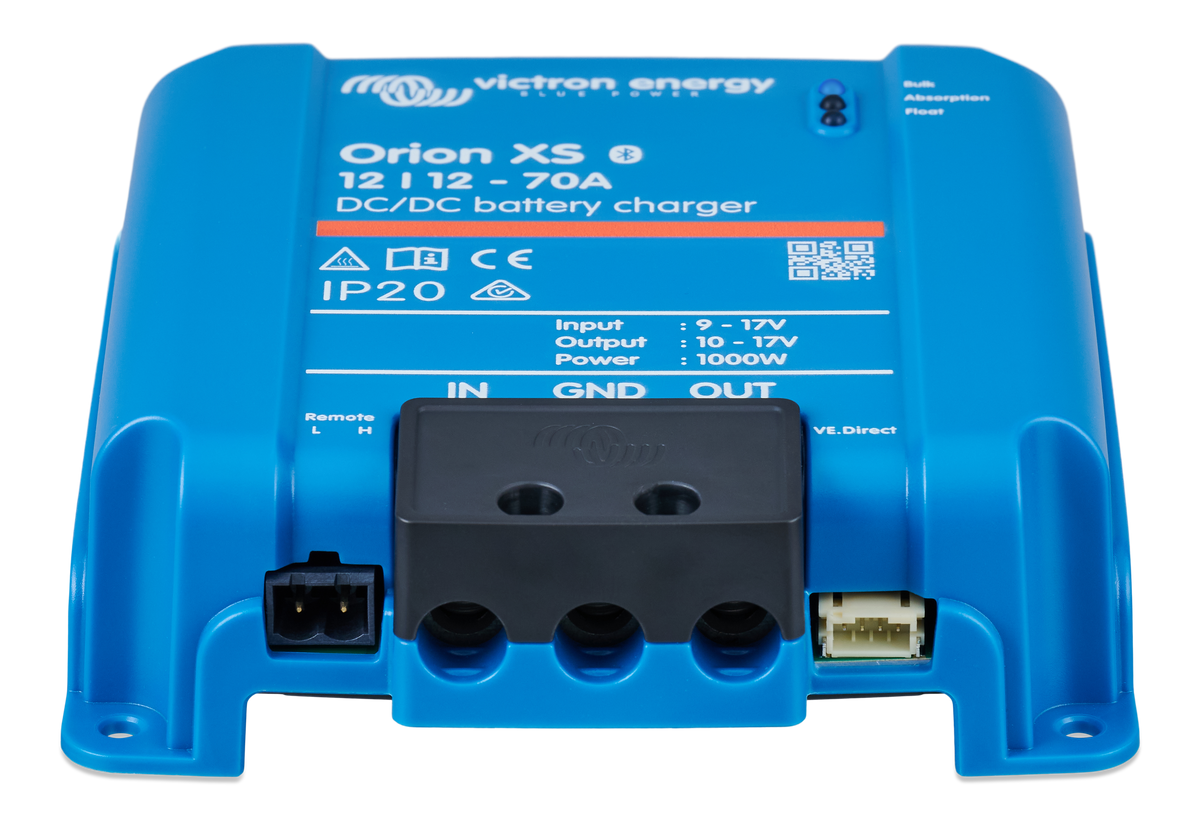

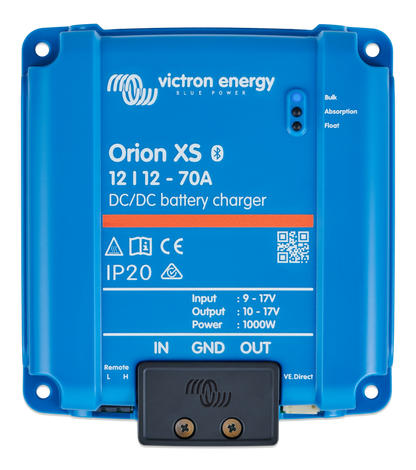

Victron Orion-Tr Smart XS 12/12-70A DC-DC charger

The Victron Orion XS 12/12-70A is a compact, high efficiency DC-DC battery charger built for dual-battery setups, including vehicles with modern smart alternators. It charges your house battery from the starter battery with an adaptive multi-stage algorithm, and you can dial in the current from 1 to 70 A in the VictronConnect app to keep your alternator happy.

• Input voltage range: 9 to 17 V
• Output voltage adjust range: 10 to 17 V
• Input and output current setting range: 1 to 70 A
• Continuous output power: 1000 W up to 40 °C (at 14.3 V)
• Maximum efficiency: 98.5%
• Bluetooth with VictronConnect, VE.Smart Networking and VE.Direct (incl. DVCC)
• Can be used as a power supply
• Operating temperature: -20 to +60 °C (derating 1.5% per °C above 40 °C)
• Protection: IP20 (power electronics enclosed in IP65 housing)
• Screw terminals, max cable 4 AWG (25 mm²)
• Weight: 0.340 kg (0.74 lb)
• Dimensions (h x w x d): 137.3 x 123.1 x 40 mm (5.4 x 4.85 x 1.6 in)
• Part number: ORI121221040
