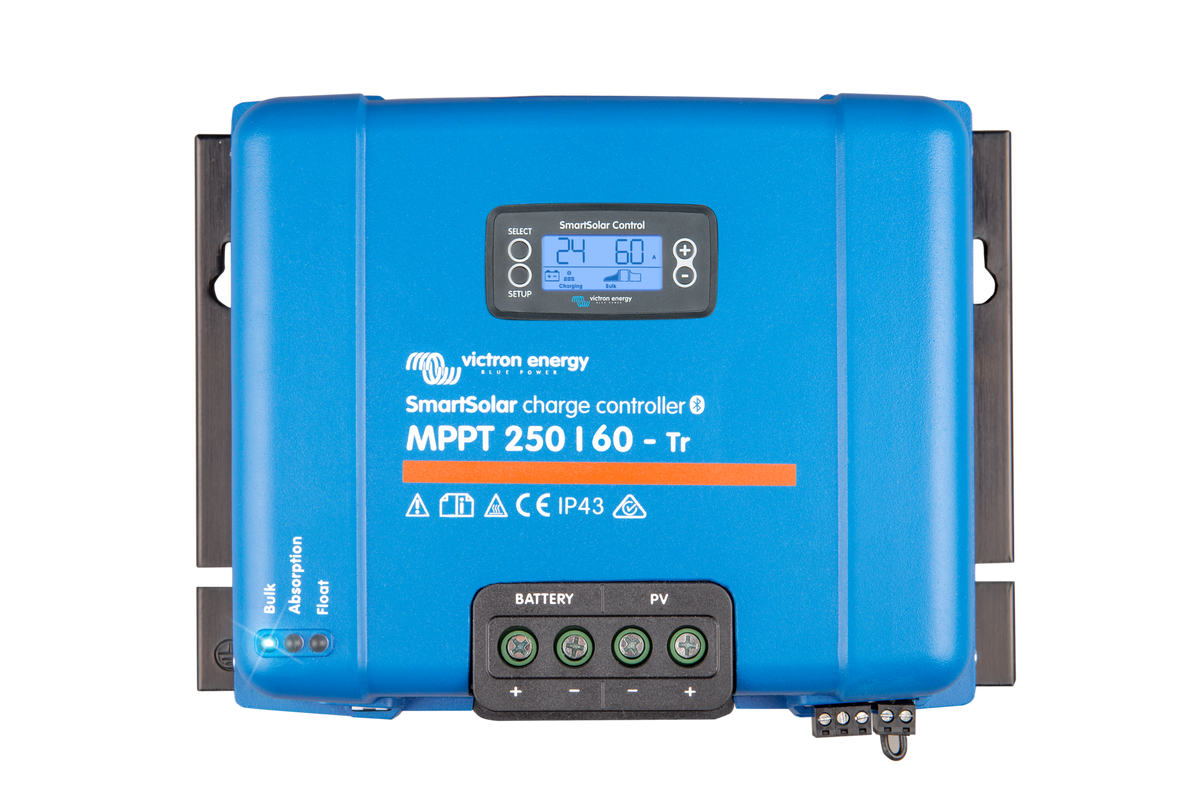

Victron SmartSolar MPPT 250/60-Tr

The Victron SmartSolar MPPT 250/60-Tr handles up to 250 V of PV input, so you can run longer panel strings with thinner wire, and charges your batteries at up to 60 A. It's fanless, over 99% efficient, and built-in Bluetooth lets you set it up and keep an eye on it from the VictronConnect app.

• Battery voltage: 12/24/48 V auto select (36 V with software tool)
• Rated charge current: 60 A
• Nominal PV power: 860 W (12 V), 1720 W (24 V), 2580 W (36 V), 3440 W (48 V)
• Max PV open circuit voltage: 250 V absolute max, 245 V start-up and operating max
• Max PV short circuit current: 35 A
• Maximum efficiency: 99%
• Communication: VE.Direct and Bluetooth
• Parallel operation: up to 10 units synchronized with Bluetooth
• Programmable relay and remote on/off
• Operating temperature: -30 to +60 °C (full rated output up to 40 °C)
• Protection: IP43 (electronics), IP22 (connection area)
• Terminals: 35 mm² (AWG2) PV and battery screw terminals
• Weight: 3 kg (6.61 lb)
• Dimensions (h x w x d): 185 x 250 x 95 mm
• Part number: SCC125060221
